OS Max 10 FP remote needle

Go down

OS Max 10 FP remote needle  Empty OS Max 10 FP remote needle

Post  getback Fri Jan 06, 2023 1:29 pm

Who made this add on ? OS Max 10 FP remote needle  Ptdc0300
OS Max 10 FP remote needle  Ptdc0301 Thanks for the winner with the answer . Santa
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 9955
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  gkamysz Fri Jan 06, 2023 3:05 pm

71704000 original OS accessory.
gkamysz
gkamysz
Gold Member
Gold Member

Posts : 370
Join date : 2018-02-22
Location : Chicagoland

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  Ken Cook Fri Jan 06, 2023 3:05 pm

That needle valve setup has been used for years by OS. The needle you have pictured is the OS 1A needle valve assembly. I have about a dozen brackets as shown. In addition, the later model FP.35's-40's came equipped with the same setup and were listed as the FP-S versions just like the LA.25-.46 S versions. The LA series used different needle valve assemblies and a slightly different bracket. The early version LA used the same bracket which morphed into a metal bracket which was later a part of the plastic backplate. One needle valve assembly that's UNOBTAINABLE is the FP.10 control line needle. It's a excellent quality needle and it was made specifically for the FP.10 as no other models used that particular needle. I'm fortunate to own 3 of them.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5381
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  getback Sat Jan 07, 2023 6:49 am

Thanks Greg and Ken for the info , I looked and couldn't find any info on it / In fact i have more trouble looking up OS parts ,,, I have a OS Max 20 R/C that i need a needle for and have looked for 30 mins. now and still cant decide what one it takes Its the older one no markings on it , If its not to much trouble ?! Laughing
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 9955
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  gkamysz Sat Jan 07, 2023 10:24 am

The Type 21 carb uses needle 22281977 part of needle assy 22281903.
gkamysz
gkamysz
Gold Member
Gold Member

Posts : 370
Join date : 2018-02-22
Location : Chicagoland

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  getback Sat Jan 07, 2023 1:01 pm

Thanks got one coming for $12 shipped Amazon / Hobbico brand repl;emt. Hats Off
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 9955
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  HalfaDave Sat Jan 07, 2023 2:28 pm

Hi getback,

I have busted allot of rc OS needle valves.
The nipple that goes in the carb is hard to get.
Same needle valve works from .10-.40 or beyond.
Never seen a .10 with remote needle setup like that, and a later muffler.
Nice score.
Take care,
Have fun,
Dave
( I ran the guts out of older OS.25s to try and beat later FXs. The Magnum brand parts work.)
HalfaDave
HalfaDave
Platinum Member
Platinum Member

Posts : 554
Join date : 2022-12-06
Location : Oakville, Ontario

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  roddie Sun Jan 08, 2023 1:44 pm

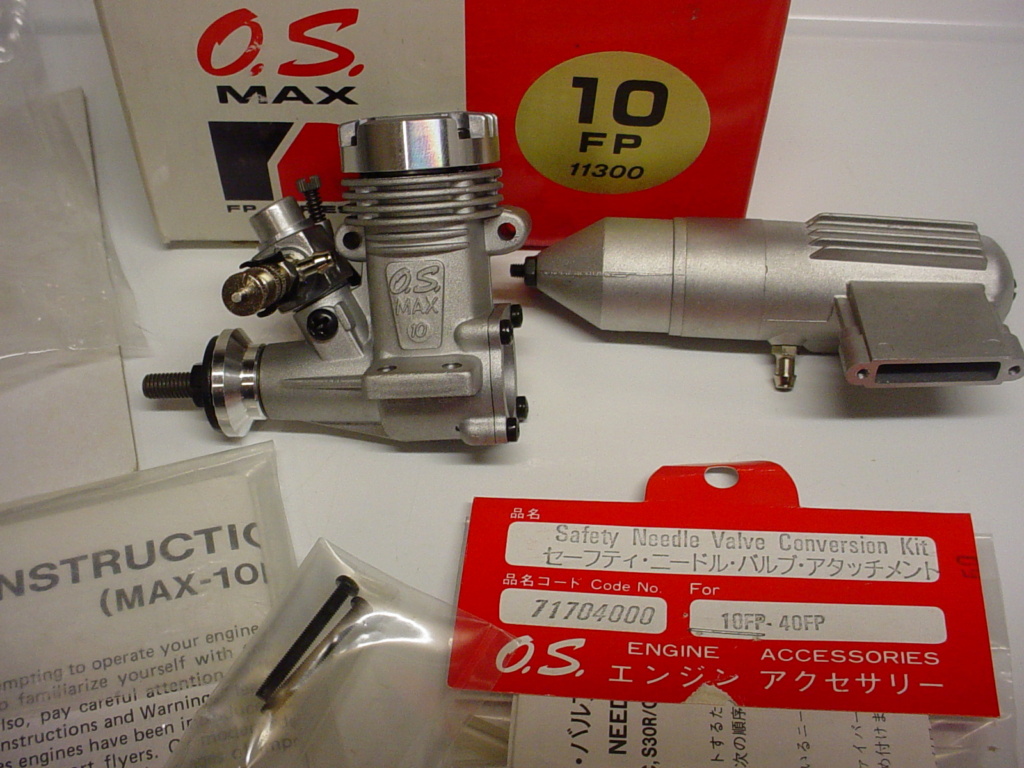

Hi Eric, I've posted this photo of my .10FP/RC before, but here it is again. Note the same part# that Greg referenced earlier in the thread.

OS Max 10 FP remote needle  Os_10_13

I bought the engine and the remote needle kit from Tower, over 20 years ago. All is still new in the box.. including two RC kits sized for it; an Ace "All Star" bipe.. and a Herr "Lil' Extra" ARF.


Last edited by roddie on Sun Jan 08, 2023 1:53 pm; edited 1 time in total (Reason for editing : corrected to Greg referenced PN)
roddie
roddie
Top Poster
Top Poster

Posts : 8078
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle

Post  aspeed Mon Jan 09, 2023 10:56 am

The needle valve assembly on the remote looks like it could be the same as the carb mounted one. The difference may just be an extra nut to hold it on to the sheet metal bracket, and an additional nipple on the carb. It could be fairly easily made up with the right tap and die. The smaller .10 may be a different thread than the other bigger engines.
aspeed
aspeed
Platinum Member
Platinum Member

Posts : 783
Join date : 2013-01-18
Location : Leamington Ont. Can.

Back to top Go down

OS Max 10 FP remote needle  Empty Re: OS Max 10 FP remote needle
