Christmas Present from my Aussie friend --- cleaned & rebuilt

Nice work on cleaning up the engines and building the stands! Good idea to use circuit board stand-offs(?) to mount the engines to a distance from the stands. Going to use those on mine too... My Hopper does not have that nice birdgage mount, so I’ll need some extra-long stand-offs. These might work on Tee Dees and other beam mount engines too

I am wondering if these old stock Bug and Hopper engines still had 3-piece pistons? That piston did not have the swaged cup, but a removable  retaining piece with a circlip to hold it in place. I have a very old Babe Bee with such a 3 piece  piston, and pretty loose piston to rod connection, that I could not reset with the tool we use for later pistons with balljoint..

balogh wrote:I am wondering if these old stock Bug and Hopper engines still had 3-piece pistons? That piston did not have the swaged cup, but a removable  retaining piece with a circlip to hold it in place. I have a very old Babe Bee with such a 3 piece  piston, and pretty loose piston to rod connection, that I could not  reset with the tool we use for later pistons with balljoint..

Hello balogh!
Yes, all three engines have the 3-piece piston/connecting rod assembly.
Allan (my Aussie friend) used the Space Bug Jr. the most of the three.
And of course, it had the most play of the three.

The Space Bug Jr. is close to the newer Cox Baby Bee engines for design.
Just the venturi sticks out on the Space Bug Jr.

On to the piston reset tool.
I tried to remove the clip inside the piston but could not (like I can on the small Enya engines.)
SO,
I slightly modified the reset tool to make it work on the 3-piece piston assembly.

Widened the slot on either side and also made it deeper with my Dremel cut-off disc, so it would work.
It may not really reset the newer Cox piston assembly now, but there is more clearance for the con rod now?

One thing to know if you do reset the 3-piece piston assembly.
Do not hit the reset tool very hard and after each hit, rotate the tool 90° after each hit.
I usually check the play after each hit to see if it has been reduced, then reinsert the tool at the next 90° hit from the last hit.

I did notice that it took much less hard hitting on the reset tool on the 3-piece piston compared to a swaged cup piston.

Thanks for the clarification, Sosam117...yes, the retaining disc in the 3 piece piston is certainly thinner than the swaged cup and bends easier, so one should tap on it with caution..I have not tried to remove the circlip either, but maybe a sewing needle with a 90 degree bent tip might help pry it out?

KariFS wrote:Nice work on cleaning up the engines and building the stands! Good idea to use circuit board stand-offs(?) to mount the engines to a distance from the stands. Going to use those on mine too... My Hopper does not have that nice birdgage mount, so I’ll need some extra-long stand-offs. These might work on Tee Dees and other beam mount engines too

Hi KariFS,

I have used the circuit board stand-offs for many years.
When I change out a small 1/2A engine to a electric outrunner motor to have the prop clear the sides of the fuselage.
I use stronger(larger) stand-offs on bigger outrunner motors.

Here is what I used for my stand-offs:

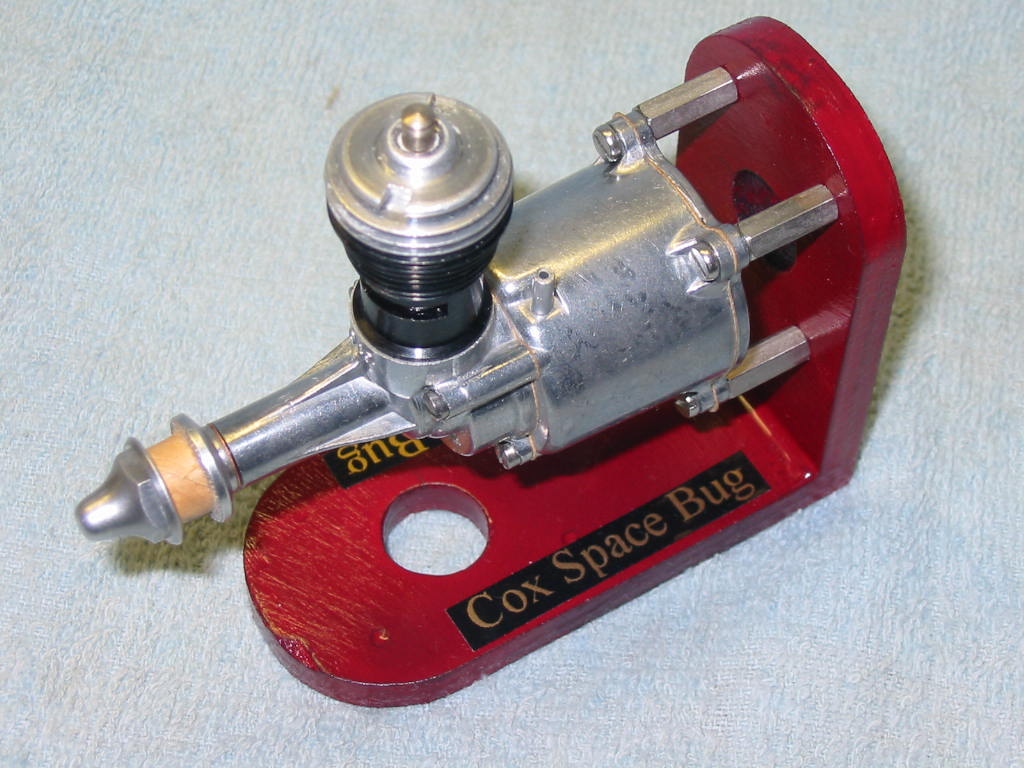

On the Space Bug
I used 2.5mm cheese head screws, as the screws were a good fit to the original holes.
The original screws that were there is an odd size 3-56 inch screw which measures fairly close to the M2.5 metric screw.
So the matching stand-offs are M2.5 metric threads and are 10mm long.

For the Space Bug Jr.
I used 2.0mm cheese head screws as well, as the size of the Cox 2-56 screw measures slightly more than 2.0mm and the mounting holes fit the 2-56 screws with no problems.
So the matching stand-offs are M2.0 metric threads and are 10mm long.
L would have liked to use "four" nylon stand-offs to have blended in with the plast tank of the Space Bug Jr.
But the Hardware store was all out of the nylon stand-offs I needed, so I had to settle for the steel ones.
The nylon stand-offs would have been nice, but didn't want to pay $8.00 in shipping for $3.00 worth of nylon stand-offs.

Last the Thermal Hopper
I was lucky that Allan did have the Birdcage mount on his Thermal Hopper.
With the Thermal Hopper, I just used the 2.5mm screws to mount the engine to my stand.


KariFS,
For your situation, screwing together "two" stand-offs that are 10mm long will just clear the needle valve assembly to the firewall.

Here is a short description on how I would do it.
The 2-56 screw on the upper crankcase housing is about 1/2" (about 13mm) long
The 2-56 screw on the lower portion on the crankcase housing is about 1/8" (about 6mm) long.
Order "twelve" cheese head (Filister) head 2-56 screws that are 3/4" long (about 20mm)
Order "eight" circuit board stand-offs that are about 3/8" (about 10mm) long and the internal threads are 2-56".
Cut "four" of those 2-56 screws in half. Don't loose any part of the cut-off screw!
The one end that has no head you thread that into the one stand-off with a little thread lock dripped into the stand-off threads.
After the stand-off with the thread lock has cure enough, thread another stand-off onto cut-off screw sticking out of the one stand-off and after screwing then together you should have two stand-offs screwed together.

Now that other end of the cut-off screw(with the head on it), clean up the end of the thread using your Dremel tool and try to put a camphor on the cut-off end. ( this is a hard task to do without loosing the screw!)

Next is to replace the original 2-56" OEM screws in the Thermal Hopper's crankcase with the 3/4" length 2-56 screws you have.
The screws should stick out from the Thermal Hopper's back plate by about an 1/8of an inch (about 6mm).
Next, screw on your doubled stand-offs that you screwed together to the screws sticking out from the back plate of the Thermal Hopper. The stand-offs should screw down to the back plate? If the screws are too long, cut them shorter until the stand-offs screw down to the back plate.

Now you have "four" stand-offs that should be just passed the venturi intake for you to mount the engine to the firewall or mount.
If you are really going to use the engine, I would use the nylon stand-offs, as in a crash, the nylon stand-offs would break-off.

balogh wrote:Thanks for the clarification, Sosam117...yes, the retaining disc in the 3 piece piston is certainly thinner than the swaged cup and bends easier, so one should tap on it with caution..I have not tried to  remove the circlip either, but maybe a sewing needle with a 90 degree bent tip might help pry it out?

I have tried everything.
sewing needle at 90°
dental pick
Everything that I use to remove the Enya's c-clip on the Cox engines. ----- nothing.
No Luck



And those Enya clips are a SOB to remove as they spin around in the groove. Like the Cox c-clip does.
Only time it is easier is when they have been run and not cleaned, the c-clip doesn't move around in the groove.
Then I can get the c-clip with the dental pick and it is still tough! (Without losing it when it flies out)

Thanks or the tips and measurements, Mike! I am not going to fly, probably not even run my old Thimble Drome engines, as I only have one of each.

As it happens, I was just about to place an order for some electronics stuff, and the store carries many kinds of stand-offs. Actually my electronics project requires both M2.5 and M3 stand-offs and a bunch of other small hardware. I’ll add some for the engines too

My local hardware stores only carry a small selection of M3, some M4, only the bigger sizes have a good selection and reasonable prices, so just about anything special needs to be ordered. Postage is usually about 7€, but with the gas prices and parking fees nowadays that is not that bad compared to driving to a couple of stores in the city.

I recently had a similar situation with a K&B .049. I ended up gluing the circlip with CA and hitting it with kicker on one end to prevent it from rotating. I then used the picks to remove it. My father made dental equipment and tools . He has quite a variety of them to choose from but many of them are too weak.

Ken Cook wrote:            I recently had a similar situation with a K&B .049. I ended up gluing the circlip with CA and hitting it with kicker on one end to prevent it from rotating. I then used the picks to remove it. My father made dental equipment and tools . He has quite a variety of them to choose from but many of them are too weak.

When I go and get my teeth cleaned (twice a year), I ask my dentist "if" he has old picks I could have?
I usually go out the door with about six to ten dental instruments.

I find them handy for working on the engines.
Also, some of the tools have nice and hard tips and some have bendable tips.

I find it interesting that Enya used a stamped steel con rod. From what I heard, it still did the job.

Some years ago, I remembered that the New Mexico Army National Guard in Gallup, NM had a grease gun from WW2. I got to examine it closely, was amazed that although it had a long magazine and could be put on fully auto shooting 45 caliber what I guess was pistol ammunition, most of it was made of heavy duty stamped steel parts. Was said to be very cost effective to make in its day.

These were carried by tanker crews, because it was compact and easy to carry moving in and out of those confined spaces. Think I may still have my father's lead casting soldier molds with a WW2 soldier posed firing one.

GallopingGhostler wrote:I find it interesting that Enya used a stamped steel con rod. From what I heard, it still did the job.

GallopingGhoster,
The connecting rods are made of tempered aluminum and not of steel.
Originally, the con rods were stamped out then shaped to a round section in the middle.
These stamped out and rounded con rods were seen in the early Enya rear induction engines.
1st piston assembly in the photo on the left side.

Later on, when Enya came out with the Enya front rotary induction, the con rods were a diamond shape.
Middle piston assembly in the photo.
I think these were going to be shaped round but never went to the next step in the mfg. process.

The last piston assembly on the right is my finishing up the diamond shape con rods to a round one.
I did just this one, but will not do anymore as it takes some time and a little rough on the fingers.

I have talked to Ken as to why the later versions were just stamped out and not really finished shaped round and just the top of one end was shaped slightly (corners rounded slightly) to fit into the underside of the piston?

It was a cost cutting measures as the slightly cheaper Cox engines were flooding the home market and Enya wanted to undercut the cost of the Cox engine to keep the home market share for Enya.


The Enya less work intensive Piston Assembly (cheaper -- less costly) found in the later smaller Enya engines.




Enya's Earlier piston assemblies with shaped con rods (more intensive work ---cost more in time/money)





Another thing to notice is the cage (the part under the piston).
The earlier versions had a milled section on either side of where the con rod pin goes. (lighter)
The later version does not have this done (heaver) --- more cost cutting and less machining/labor.

I have been rebuilding:
The Enya .049 engines (almost 73 of them)
The Enya .06 engines (almost 84 of them)
The Enya .08 engines (almost 20 of them)
And the Enya .10 engines (almost 38 of them)

And most of them I have noticed vary from one to another of manufacturing.
Starting from some missing the thrust washer behind the prop drive washer.
Wrong throttle valve barrel in the carburetor on the wrong engine, (a larger barrel size for the .08 on a Enya .06 engine)
More that 50% of the time, the crankshaft rubbing on the back plate (inside).
But also noticed two or three gaskets on the back plate to shim back the rear back plate so that the crank would not rub on the back plate.
And some of that is from the excessive play because the crankcase housing is shorter that it should be.
And when I rebuild the engine, I use copper spacers to get the correct end play, so the crank doesn't grind into the back plate.
Ken has been helpful letting me know some of the specifics on the play there.
It is interesting to know that how much the aluminum housing expands to where under operating temp that large gap at the beginning is reduced when the engine is up to running temperature.
So, you need to have enough end play in that shaft!
