Post  rsv1cox Thu May 30, 2019 2:52 pm

I have sworn off ebay purchases but I couldn't pass this one up. BIN.

A ball bearing 4006 that you don't see everyday as most made were bushed yet shared the same number designation.

The seller did not show the business end in his photos so I was stymied as to it's function. Looks to be a belt drive but not a good one as it's way out of round. Any ideas?

Enya with a roof, or maybe the Space Needle Enya Space_11
Enya with a roof, or maybe the Space Needle Enya Space_10
Enya with a roof, or maybe the Space Needle Enya Space_12

Enya with a roof, or maybe the Space Needle Enya Space_13
Enya with a roof, or maybe the Space Needle Enya Space_15
Enya with a roof, or maybe the Space Needle Enya Space_14

The heat sink is a friction fit and removed with a screwdriver twist.

Needs a good AF boil before I remove the front end.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  crankbndr Thu May 30, 2019 3:10 pm

Looks like a boat engine, possibly v for starting?
crankbndr
crankbndr
Top Poster
Top Poster

Posts : 3065
Join date : 2011-12-10
Location : Homestead FL

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Surfer_kris Thu May 30, 2019 3:16 pm

Car engine with centrifugal clutch and extra cooling for the head, a DYI-part I guess. The V-part is for starting it by using a belt. Carb seems to be a Perry one, looks very much like ones that were used on the HB .15 engines.
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1905
Join date : 2010-11-20
Location : Sweden

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  rsv1cox Thu May 30, 2019 3:19 pm

Yes, V groove for a starter, I have a boat with a similar system for starting but a shaft drive.

Maybe a flywheel, but nothing can be attached to it for motive power other than a belt that I can see.

Nice Perry carburetor though.

#'s 587 on both pieces are curious.

rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Surfer_kris Thu May 30, 2019 4:02 pm

It looks like the Bell and clutch style that you find on cars. The Bell part is missing and will go outside of the clutch.
Surfer_kris
Surfer_kris
Diamond Member
Diamond Member

Posts : 1905
Join date : 2010-11-20
Location : Sweden

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Davenz13 Thu May 30, 2019 4:10 pm

Hi Bob
I think it would have had a hub that fits over those two arms on the clutch. When the motor turns the arms move out and grip on the hub which is connected to the drive shaft. You might have to fabricate one as the original is probably still in whatever the motor came out of.

Oops, too late . Surfer Kris beat me too it.
Davenz13
Davenz13
Platinum Member
Platinum Member

Posts : 593
Join date : 2013-11-28
Age : 68
Location : Palmerston North, New Zealand

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  NEW222 Thu May 30, 2019 4:32 pm

Wow. Both very neat, and very interesting. Now if only teh engine could talk and tell you, and us, its history. I also see that it appears to be run properly on fuel with castor based oil!
NEW222
NEW222
Top Poster
Top Poster

Posts : 3892
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  rsv1cox Thu May 30, 2019 5:09 pm

Ah yes, centrifugal clutch with the hex head machine screws as the pivot. Pins must not go all the way through. Reason for the ball bearing. Home made affair maybe?

Perry carb made for fine speed control with the clutch engaging at a certain rpm.

I would love to know what it powered.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  OVERLORD Fri May 31, 2019 2:08 am

I guess it was part of a Kyosho Dash 1. This Japanese car was generally equipped with an Enya 19 engine. The heatsink is different from the Kyosho heatsink. The kyosho cars and Enya engines were imported in Europe by Robbe.

A page of the Robbe car catalogue with the Enya 19 car engine

Enya with a roof, or maybe the Space Needle Enya Page_c10

and the Dash 1

Enya with a roof, or maybe the Space Needle Enya Robbe_10

Enya with a roof, or maybe the Space Needle Enya Dash1_10

The crankshaft is different from the standard Enya 19 and has an imperial thread. I mounted one in my Mardave Marauder and that goes very well.

Enya with a roof, or maybe the Space Needle Enya Imgp5310
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1786
Join date : 2013-03-19
Age : 57
Location : Normandy, France

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  rsv1cox Fri May 31, 2019 6:54 am

Thanks all,

I ran this by Bob Allan of Enya research fame and he couldn't tag it as to function, but mentioned the heat sink was of Japanese manufacture. I also contacted the seller and he said the original owner had passed but was into model airplanes. Not much there.

I like the clutch/hub idea to turn a shaft powering either boat or car. But there should be a lining on each "shoe" allowing slippage as metal to metal contact could be brutal. Think brake shoes in reverse only to go not to stop.

Bob



rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Dave P. Fri May 31, 2019 7:44 am

The bell was probably the part that had a fiber lining.  It looks like an earlier helicopter clutch.  The heat sink is also similar to early helicopter heat sinks.  I don't know of any helicopters that might have used that engine though and the few that I'm familiar with used a shaft for starting rather than a belt.
They also usually had a fan of some sort, at least the ones I know of.

My guess is that it's a helicopter engine. Is there a prize???
Dave P.
Dave P.
Gold Member
Gold Member

Posts : 477
Join date : 2017-07-31
Age : 66
Location : Durham, NC

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Dave P. Fri May 31, 2019 7:52 am

After thinking about it for a few, the Hirobo Shuttle used a belt for starting and was in the same size range. Very possibly it's from a forunner of the Shuttle or other Japanese heli.
Dave P.
Dave P.
Gold Member
Gold Member

Posts : 477
Join date : 2017-07-31
Age : 66
Location : Durham, NC

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  getback Fri May 31, 2019 8:45 am

Hey Bob what is inside of the clutch , is there a spline or hex of some kind ? i blew it up from copy but couldn't tell To dark Enya with a roof, or maybe the Space Needle Enya Space_10 Never mind that would make it direct drive DUH Laughing
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10104
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  rsv1cox Fri May 31, 2019 9:27 am

I hadn't thought Helicopter Dave, but that's the best option.

The 4006 was a mid 70's/80's engine and Helicopters were just coming into their own at that time.  Enya did make an engine specifically for helicopters.  I have a couple of their car engines which could be adapted for helicopters.

Enya with a roof, or maybe the Space Needle Enya Enya_c14

The picture is your prize.  Smile

Eric, the Enya is in the A/F boil pot right now.  When it's clean and loose I will take it apart and post pictures.
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  getback Fri May 31, 2019 3:43 pm

NICE !!
The picture is your prize. Smile wrote:
Hey Dave lol! lol! This Site Rocks!
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10104
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  rsv1cox Fri May 31, 2019 4:56 pm

Smile Smile

Freebee pictures......some prize Dave says.....Smile

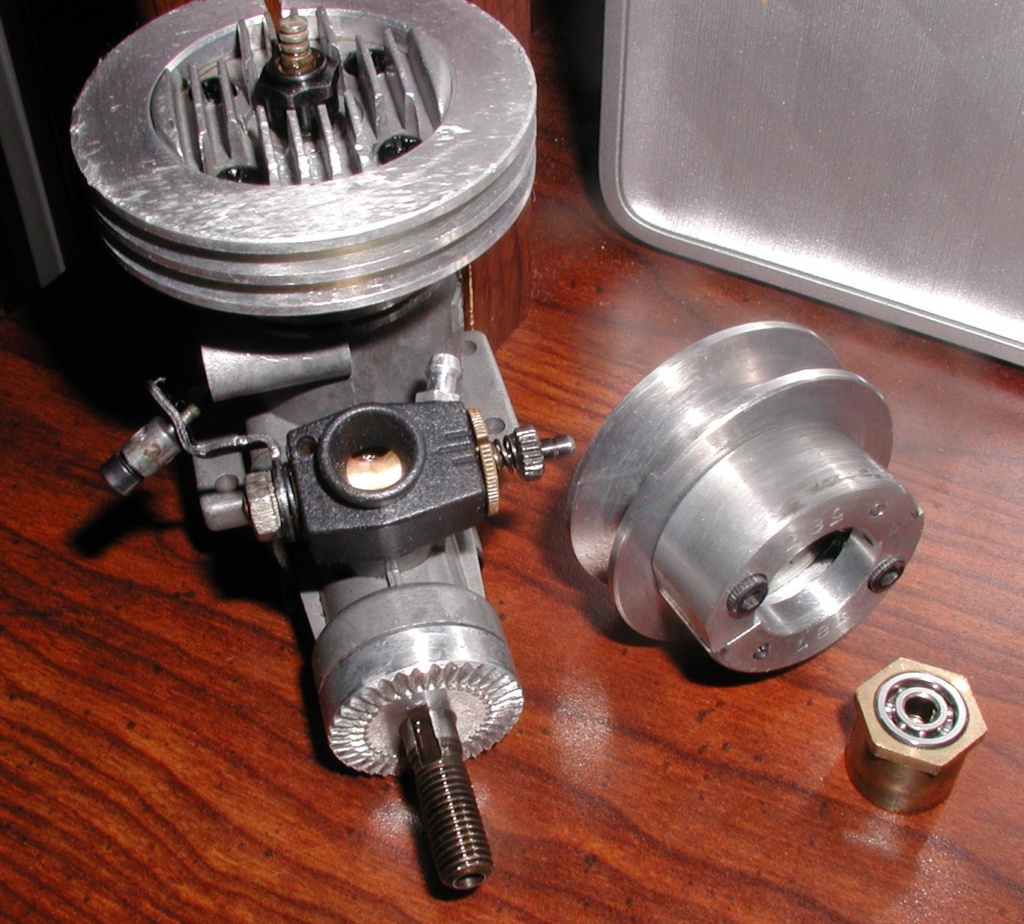

Boiled the Enya for about four hours, Perry carburetor included. Worried a bit about the outcome but it did well, clean and no damage. The Enya came out predictably clean.

I removed the clutch system by backing off the assembly until I could unscrew the brass nut. I used tooth picks to block the piston.

Nicely constructed, expansion springs holding the clutches against force to a certain point. Must have been commercially available at the time, might even be now.

I was surprised to find the crankshaft keyed to the prop drive washer, not typical. Maybe only on the ball bearing or specialty engines.

I'm not going any further with this engine. Mount it and gaze. But, it would be easily converted back to R/C or C/L.

Enya with a roof, or maybe the Space Needle Enya Cleane11
Enya with a roof, or maybe the Space Needle Enya Cleane12
Enya with a roof, or maybe the Space Needle Enya Cleane10
Enya with a roof, or maybe the Space Needle Enya Cleane14
Enya with a roof, or maybe the Space Needle Enya Cleane13
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Dave P. Fri May 31, 2019 5:07 pm

Is the bearing in the center of the brass nut a sprag clutch?  In other words, is it a one-way bearing?  If so, that could have been for a starter shaft.  That was a feature on some heli engines in the 70's - 80's.

Thanks for the pictures Bob!  This Site Rocks!
Dave P.
Dave P.
Gold Member
Gold Member

Posts : 477
Join date : 2017-07-31
Age : 66
Location : Durham, NC

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  rsv1cox Fri May 31, 2019 5:15 pm

Dave P. wrote:Is the bearing in the center of the brass nut a sprag clutch?  In other words, is it a one-way bearing?  If so, that could have been for a starter shaft.  That was a feature on some heli engines in the 70's - 80's.

Thanks for the pictures Bob!  This Site Rocks!

Bearing rotates both ways Dave. Might lock-up at speed but I doubt it.

Looks to be a bearing for a pilot shaft.

Welcome......... Smile

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10530
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Oldenginerod Fri May 31, 2019 6:03 pm

rsv1cox wrote:
Dave P. wrote:Is the bearing in the center of the brass nut a sprag clutch?  In other words, is it a one-way bearing?  If so, that could have been for a starter shaft.  That was a feature on some heli engines in the 70's - 80's.

Thanks for the pictures Bob!  This Site Rocks!

Bearing rotates both ways Dave.  Might lock-up at speed but I doubt it.

Looks to be a bearing for a pilot shaft.

Welcome......... Smile

Bob

The bearing would be to support and centralise the clutch drum & drive shaft, otherwise gravity would cause the drum to rest against the shoes.
Bob, no problems with the clutch shoes being metal on metal. That's what most chainsaws and weed whackers use.

Rod.
Oldenginerod
Oldenginerod
Top Poster
Top Poster

Posts : 3969
Join date : 2012-06-15
Age : 61
Location : Drouin, Victoria

Back to top Go down

Enya with a roof, or maybe the Space Needle Enya Empty Re: Enya with a roof, or maybe the Space Needle Enya

Post  Sponsored content


Sponsored content


Back to top Go down

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
