What it takes to be a champion Empty What it takes to be a champion

Post  batjac on Fri Aug 02, 2019 11:49 pm

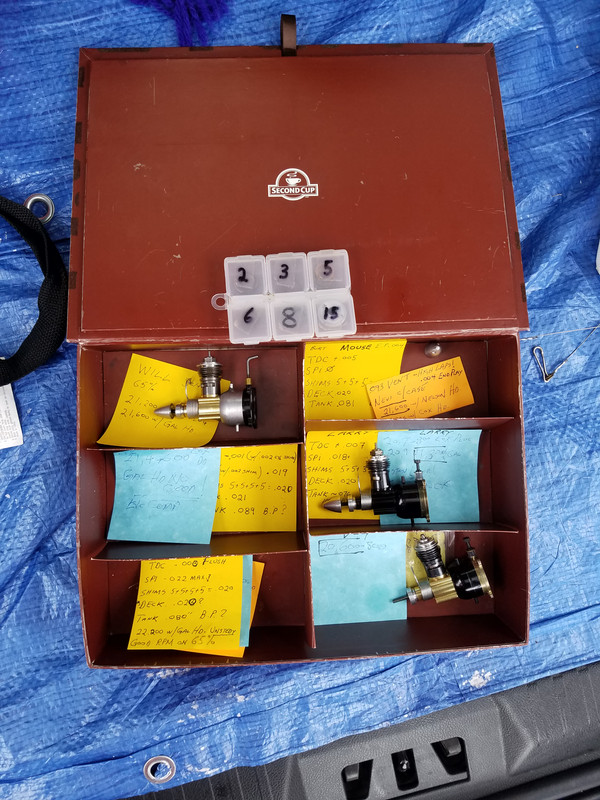

While I was at the Northwest Regionals a couple of months ago, I was talking to Paul Gibeault about engines.  He let me look in his little Box O' Magic and see how he documents his engines.  I asked if I could take a picture and post it on the forum.  Behold, what true dedication means:

What it takes to be a champion 20190526-104024

The man is a true Master of Mouse Magic.

The Not Worthy Mark
batjac
batjac
Diamond Member
Diamond Member

Posts : 1728
Join date : 2013-05-22
Age : 56
Location : Portland, OR, USA

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  Marleysky on Sat Aug 03, 2019 12:16 pm

I think what you ment to type was, “The Note Worthy Mark “.
Marleysky
Marleysky
Diamond Member
Diamond Member

I Support My Forum

Posts : 2329
Join date : 2014-09-28
Age : 66
Location : Grand Rapids, MI

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  rsv1cox on Sat Aug 03, 2019 6:56 pm

Marleysky wrote:I think what you ment to type was, “The Note Worthy Mark “.

Smile Smile
rsv1cox
rsv1cox
Top Poster
Top Poster

Posts : 4566
Join date : 2014-08-18
Location : West Virginia

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  ticomareado on Sat Aug 03, 2019 8:17 pm

I see that top L/H engine has a plastic back plate on it. As I recall, there was some previous thread that didn't speak too highly of plastic back plates. I wonder if anything special has been done regarding this example.
ticomareado
ticomareado
Platinum Member
Platinum Member

Posts : 822
Join date : 2013-10-03
Location : NC

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  NEW222 on Mon Aug 05, 2019 3:50 pm

With any luck, Paul may log in here and see this and answer the question regarding the plastic backplate. But from what I can see is that there is a different needle valve assembly in the backplate. Is it possible that it is easier to remove and replace the needle assembly in a plastic backplate is easier than that of an original cast one?
NEW222
NEW222
Diamond Member
Diamond Member

Posts : 2282
Join date : 2011-08-13
Age : 41
Location : oakbank, mb

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  aspeed on Mon Aug 05, 2019 4:43 pm

I wonder what he means with the .080" tank - backplate? Looks like maybe he took .020" off the case, or maybe that is what he wanted for headspace when he says deck .020". He seems to like nitro anyway. 65%.
aspeed
aspeed
Gold Member
Gold Member

Posts : 291
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  batjac on Mon Aug 05, 2019 5:18 pm

Not sure about the plastic backplate. I didn't ask too many questions of Paul, as I didn't want to take up too much of his time. There was racing going' on, ya know.

The .080, .081, or .089(???) I just naturally assumed was the venturi tube inner diameter, as the generally accepted optimum diameter for the venturi in a reedie is .082".

The Speculative Mark
batjac
batjac
Diamond Member
Diamond Member

Posts : 1728
Join date : 2013-05-22
Age : 56
Location : Portland, OR, USA

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  aspeed on Mon Aug 05, 2019 6:31 pm

That sounds logical/obvious thanks. Now the .020?
aspeed
aspeed
Gold Member
Gold Member

Posts : 291
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile

Back to top Go down

What it takes to be a champion Empty What it takes to be a champion

Post  rex f. on Tue Aug 06, 2019 6:26 am

The optimum orifice size on a reedie is
Venturi.092
Backplate  .085
No idea what  is meant by deck ..020
 Rexf.
rex f.
rex f.
Banned

Posts : 40
Join date : 2019-07-11
Age : 76
Location : Scone nsw aust 2337

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  gkamysz on Tue Aug 06, 2019 9:21 am

Paul explains in his articles, deck height is what is more commonly called squish clearance.
gkamysz
gkamysz
Gold Member
Gold Member

Posts : 130
Join date : 2018-02-22
Location : Chicagoland

View user profile

Back to top Go down

What it takes to be a champion Empty Re: What it takes to be a champion

Post  aspeed on Tue Aug 06, 2019 9:43 am

OK, seems much higher than I would go, but I suppose I don't use 65% nitro any more.
aspeed
aspeed
Gold Member
Gold Member

Posts : 291
Join date : 2013-01-18
Location : Leamington Ont. Can.

View user profile
