Mad Guillow's Typhoon 900 series

Post  944_Jim Wed Jun 03, 2020 6:15 pm

Yup. Gonna bash one together to get my fingers nimble. This is practice while waiting for my Frog Mosquito clone kit to arrive. That one will have twin .09 Medallions.
This one should fly on 35' lines pretty well:
Guillow's Typhoon 900 series Img_2220
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Wed Jun 03, 2020 6:48 pm

Hmmm. May be a bit nose heavy. Let's take another look:
Guillow's Typhoon 900 series Img_2221


Ok. We can fix that:
Guillow's Typhoon 900 series Img_2222
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Wed Jun 03, 2020 6:50 pm

I think this will work! I intend on using as much kit wood as possible. I think most of the fuselage/bulkheads may be ok. But the wing will be straight up a clone wing:
Guillow's Typhoon 900 series Img_2223
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Wed Jun 03, 2020 6:57 pm

The tail will be scratched from scab lumber. It should remain about the same size as the stock kit.

But I still needed a bit more substance before jumping into a kit bash. A bunch of paper-covered foam sheet was being tossed at work. An hour later, I had this:

Guillow's Typhoon 900 series Img_2224

Guillow's Typhoon 900 series Img_2225
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  getback Thu Jun 04, 2020 8:49 am

from dumpster to airplane Smoking
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 8138
Join date : 2013-01-18
Age : 64
Location : julian , NC

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  rsv1cox Thu Jun 04, 2020 9:33 am

@getback wrote:from dumpster to airplane Smoking

From dumpster to airplane to dumpster...……………Smile

I'm not sure what your going after here Jim, but I'm lovin it.

Paper covered foam sheet airplane to get you back in the swing of things before tackling the Guillows I guess. Going to fly it?

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 6769
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Thu Jun 04, 2020 11:34 am

Nope, not a flier.

The foamboard is a one-to-one mock-up model of the finished product. Since the 900 series kits are considered too small for the engine, I thought of ways to build the kit around the bigger engine.

First thought was to just scale the kit up...but I wanted the more toy-like look of the smaller plane.

Then I thought, "hmmmm, I should stick with the same size, but with another wing." My first take was a mock-up side view on a Lil Satan...this was in the Wido Satan that OhBee got. It really looked workable, except for the non-tapered wing looking kind of, well, obtuse.

A quick review of other planes had me thinking of the Baby RingMaster. That wing looks good for a Spitfire, but not so much the Typhoon. From there I took a peek at the Lil Jumping Bean because the wing shape looked enough like the Typhoon wing (but bigger).

To me, this looks about right. The trick is to use as much of the kit as possible so it doesn't look too far from "normal." I wasn't looking to build a flying characature. We'll see how it goes.
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sun Jul 05, 2020 1:54 pm

So, with the mock-up in sight, time to start thinking this through.

All ribs were printed/glued/cut. Leading edge mitered and slotted for the brace. Then I started thinking about how to handle the fuselage. Then back to the wing. I know I need the wing done so I can fit the wing saddle in the fuselage.

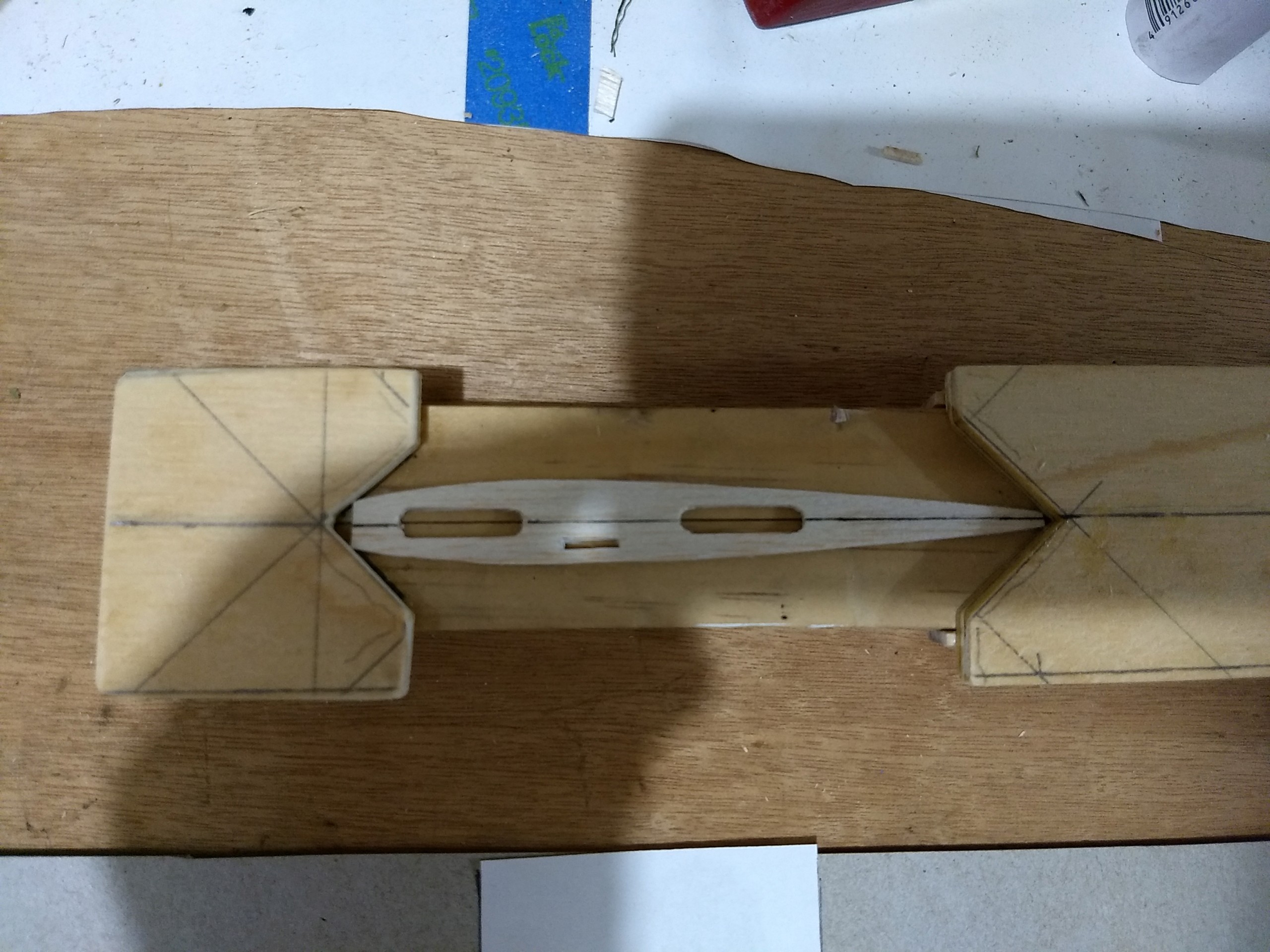

I remembered seeing a rib-centerline tool online, and realized it is time to own one. I have about 6 kits that all have symmetric ribs.
I imagine I'll be making some mini-incidence meters too. Considering mass-production on a micro-scale, I also made a wing jig just big enough to smoothly handle up to a 20" wing or fuselage.Guillow's Typhoon 900 series Img_2228
Guillow's Typhoon 900 series Img_2226
Guillow's Typhoon 900 series Img_2227
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sun Jul 05, 2020 1:58 pm

The rib jig was fun to knock out:
Guillow's Typhoon 900 series Img_2229
Guillow's Typhoon 900 series Img_2230
Guillow's Typhoon 900 series Img_2231
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sun Jul 05, 2020 2:02 pm

Guillow's Typhoon 900 series Img_2234
Guillow's Typhoon 900 series Img_2232
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  rsv1cox Sun Jul 05, 2020 4:13 pm

Jim, if your don't get a straight wing out of this, it's not because your not trying.

Looking good and waiting to see the final product.
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 6769
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sun Jul 05, 2020 4:27 pm

Soooooo...

Remember the all white foam mock-up?

Guillow's Typhoon 900 series Img_2236
Guillow's Typhoon 900 series Img_2237
Guillow's Typhoon 900 series Img_2235
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sat Sep 26, 2020 11:55 am

Update:Guillow's Typhoon 900 series Img_2011
Guillow's Typhoon 900 series Img_2010
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  getback Sun Sep 27, 2020 8:14 am

WoW thats looking good Jim ! what's the WS and engine your planning on using ? Very Happy
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 8138
Join date : 2013-01-18
Age : 64
Location : julian , NC

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sun Sep 27, 2020 9:00 am

Thanks.
This is a Lil Jumping Bean wing. I "grafted" the wing in on the stock kit plan (top and side) and thought "this may work!" The BRM wing looks more like the kit wing than the Lil Satan wing I first considered.

The stab and elevator are scaled up 125% to approximately how he same area as the LJB part, but cut on the Typhoon hinge line.

The rudder and side view are stock sizes, since I wanted the profile to stay in the 900 series size (small and cute). The fuselage is about 1/8" wider to fit the engine backplate between the fuselage sides. This will require cutting new formers/bulkheads just a bit wider...hopefully the canopy will flex enough to fit the slightly larger compound curves of the wider fuselage.

Expect a custom single vent tank (I'm a glutton for punishment) just above the LE, between the firewall at LE and the single former in front of the canopy. This may change as I hope to finish my Scientific Red Tiger P-40  with another custom single-vent tank that must be vetted (really only needs paint at this point).

The engine will be standard horseshoe-backplate. Any mods may be considered as I optimize power for loops, high wingovers and inverted (the reason for the LJB wing in place of stock).

Apart from (hopefully not so obvious) changes, the landing gear may be mounted right behind the engine on the firewall. I considered wing-mounting the LG too late into the wing construction and missed a golden opportunity to reinforce the LE for landing loads. I do like the idea of blacked-out (open) wheel wells and doors on the gear, especially if the LG looks like it is wing-mounted.

I expect to build the engine cowl to enclose the engine inverted, with the needle valve top-side. The scoop will hopefully be open at the back under the wing to allow exhaust/oil to escape rather than pool/collect inside.

More to follow!


Last edited by 944_Jim on Mon Sep 28, 2020 10:10 pm; edited 1 time in total (Reason for editing : Clarification: Lil Jumping Bean, not BRM.)
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Sun Nov 15, 2020 5:41 pm

Some pics:

Guillow's Typhoon 900 series Img_2020
Guillow's Typhoon 900 series Img_2021
Guillow's Typhoon 900 series Img_2022
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  rsv1cox Mon Nov 16, 2020 6:41 am

Inverted engines are neat but prone to putting out the fire when cold start primed through the exhaust ports. I had two of them (Black Widows or Golden Bees depending on the times) on my P-38 and flipped the plane over to start them.

Like my P-38 that Typhoon lends itself to inverted engines.
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 6769
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  getback Mon Nov 16, 2020 7:04 am

coming along , How did you do the elevator hinging Looks Good !!
getback
getback
Top Poster
Top Poster

2019 Supporter

2020 Supporter

Posts : 8138
Join date : 2013-01-18
Age : 64
Location : julian , NC

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  OhBee Mon Nov 16, 2020 1:10 pm

Tailplane moment looks too short to me with that wider wing chord....?
OhBee
OhBee
Platinum Member
Platinum Member

Posts : 695
Join date : 2016-03-23
Age : 70
Location : Minnesota

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  Davenz13 Mon Nov 16, 2020 2:23 pm

Ever since I was a kid the Typhoon and the Tempest have been favorites of mine, so much so that when I saw this 1200mm x 800mm (47" x 31") framed Typhoon print in a shop I just had to have it. Very cool looking aircraft.

Guillow's Typhoon 900 series Hawker10
Davenz13
Davenz13
Platinum Member
Platinum Member

Posts : 538
Join date : 2013-11-28
Age : 65
Location : Palmerston North, New Zealand

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  944_Jim Mon Nov 16, 2020 4:10 pm

Gentlemen,
Thanks for your posts. I appreciate the comments/support.

For Eric,
No connection yet. I glued shishkebob skewers to the mating edges for a hard point, stitched hinge line...stitching to be done after I get wood sealed. I had this method described on StuntHanger when one of the SH members called my P-40 hinges "FrankenHinges," and they were! I spread them out across the hinge line to minimize tear-outs.
The skewers were described as being able to take a beating while having very little linear hinge line. I expect the hinges to be no more than 4 or 5 hinges at about 3/16" wide each. We will see how it turns out shortly!

For RSV Bob,
Thanks for the inverted start hint...I expect to need it. The big Mossie needed to be started on edge a time or two too.

For OhBee,
Yup...really short when compared to the original placement. Even looking at a Lil Jumping Bean the moment looks kind of a bit short. I did leave the leading edge of the stabilizer starting at the stock bulkhead and moving further back (it is 25% larger), and up a bit higher (hopefully for cleaner air).
I did note there are a lot of short-coupled airframes.out there...
(Example: Baby Clown)

For DaveNZ...thanks for the Ghost View! This one is going to be printed and stuck to my Hobby Closet wall. It will help me keep track of some of the Typhoon details so I can minimize the cartoonish appearance!
944_Jim
944_Jim
Diamond Member
Diamond Member

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 1250
Join date : 2017-02-08
Age : 56
Location : NE MS

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  rsv1cox Mon Nov 16, 2020 5:21 pm

One man's "Frankenhinges" Jim, may be another man's Marilyn Monroe's.

I may be old school and a minority of one here but I have always used Dubros small, standard, and large hinges in my builds be it R/C or C/L and have never had one fail. I don't think there is another hinge or hinge system that gives the freedom of movement or ease of installation that these offer when installed properly.   Stitched hinges, now that's Franken.

The Dubro hinges on my P-38 have held through countless flights for almost exactly 50 years now.  For some reason I secured them with clipped common pins, guess I wanted to ensure they would not come loose.  The Bipe that many of us built a few years ago was about my last build still using Dubros.

Guillow's Typhoon 900 series P1010557

Someone has to clue me in to the advantages of stitched hinges, they stick out like a sore thumb IMHO.  Pardon, my prejudice is showing.  (:  But I do remember a picture that I think roddie posted of stitched hinges that accepted a 90 degree bend.  To each his own.

Edit add: Just two airplanes that I happened to have handy. The F-100, look Ma, no hinges.

Guillow's Typhoon 900 series P1010558
rsv1cox
rsv1cox
Top Poster
Top Poster

2019 Supporter

2020 Supporter

2021 Supporter

Posts : 6769
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  GallopingGhostler Mon Nov 16, 2020 9:42 pm

@rsv1cox wrote:Someone has to clue me in to the advantages of stitched hinges, they stick out like a sore thumb IMHO.
The advantage of thread sewn hinges done in Figure-8 has to do with being almost totally frictionless. This is why we used them on single channel Ace R/C Pulse rudders. The Adams actuators were low powered. The thread hinges gave the least amount of resistance.

They are not as pretty as other hinges, but where frictionless action is desired they do wonders.
GallopingGhostler
GallopingGhostler
Diamond Member
Diamond Member

Posts : 2581
Join date : 2013-07-13
Age : 67
Location : Clovis, Nuevo México

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  KariFS Tue Nov 17, 2020 2:23 am

I think sewn hinges are nice, they have that ”nostalgig” look to them. Plastic hinges do give a cleaner look. A matter of preference I suppose Smile

Here is my first attempt. I made the stitches too tight, it does not move as freely as I would like. Moving it back and forth helped a bit. The string is ”dyneema” fishing line, pre-punched holes on both parts. I sealed the holes with glue after stitching.

Guillow's Typhoon 900 series Img_0011
KariFS
KariFS
Diamond Member
Diamond Member

Posts : 1840
Join date : 2014-10-10
Age : 49

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  GallopingGhostler Tue Nov 17, 2020 3:43 am

Kari, the difference when I do them is, I don't double back through the holes to give a nice zig-zag appearance. Then it acts almost totally frictionless (within limits).
GallopingGhostler
GallopingGhostler
Diamond Member
Diamond Member

Posts : 2581
Join date : 2013-07-13
Age : 67
Location : Clovis, Nuevo México

Back to top Go down

Mad Re: Guillow's Typhoon 900 series

Post  Sponsored content


Sponsored content


Back to top Go down

Page 1 of 2 1, 2  Next

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
