Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  GWILLIEFOX on Sun Oct 30, 2016 9:12 am

[quote="GallopingGhostler"]I find an interesting thing about the Testors 8000 engine is that it fits the Cox tank engine bolt pattern. Here's some interesting facts from Peter Chinn. I am also including the Cox Black Widow for comparison. Please note that I have only included the essential text, less important text such as temperature are barometric pressure are not shown.

The Cox mounting pattern was also used by the OK 049A, 059s, the Comet Fox .07s, Fox .049s, and the DC Dart .03.
GWILLIEFOX
GWILLIEFOX
Rest In Peace
Rest In Peace

Posts : 304
Join date : 2014-12-23
Age : 76
Location : Beaver Falls, PA

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  GallopingGhostler on Sun Oct 30, 2016 9:57 am

GWILLIEFOX wrote:The Cox mounting pattern was also used by the OK 049A, 059s, the Comet Fox .07s, Fox .049s, and the DC Dart .03.

Thanks for sharing this. I knew about the OK Cub 049A and 059 reed valve, but not the Foxes nor Darts.
GallopingGhostler
GallopingGhostler
Diamond Member
Diamond Member

Posts : 2337
Join date : 2013-07-13
Age : 66
Location : Clovis, New Mexico

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  ian1954 on Sun Oct 30, 2016 4:09 pm

GallopingGhostler wrote:
GWILLIEFOX wrote:The Cox mounting pattern was also used by the OK 049A, 059s, the Comet Fox .07s, Fox .049s, and the DC Dart .03.

Thanks for sharing this. I knew about the OK Cub 049A and 059 reed valve, but not the Foxes nor Darts.

This statement caught my attention - I have a few DC Darts.

The DC Dart 0.5cc diesel is a beam mount engine and shares nothing in common with a Cox Bee. However, the DC Wasp had an optionial back plate and tank mounting assembly. The Bee is the Wasp with the mounting lugs shaved off.

Testors plastic crank case engines - Page 2 Wasp610

Here are Wasps with and without the Radial tank mount.

Testors plastic crank case engines - Page 2 Engine19

and a Dart and a Wasp together

Testors plastic crank case engines - Page 2 Dart__11

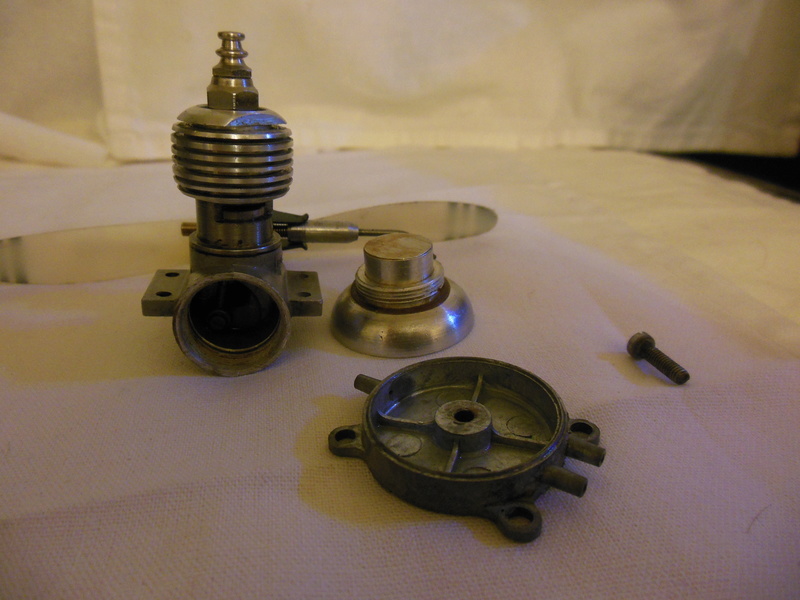

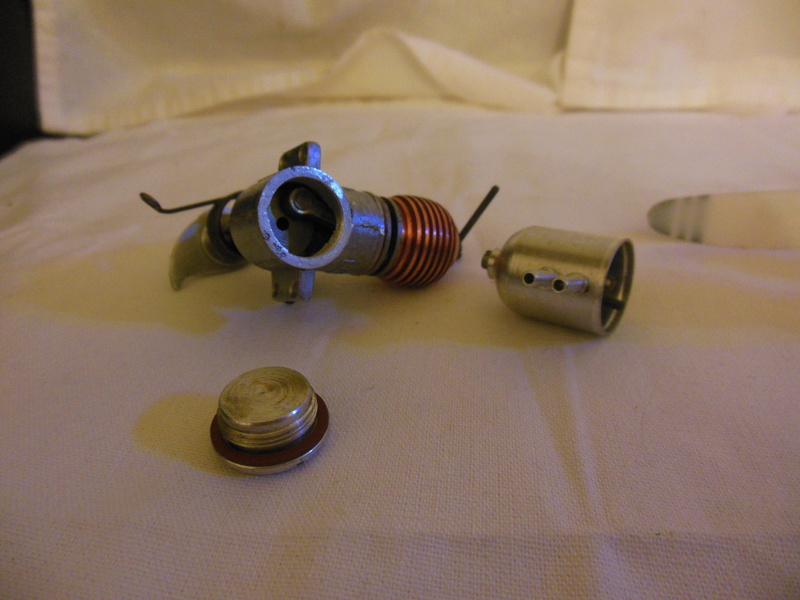

Here they are with the back ends disassembled

Testors plastic crank case engines - Page 2 Dart__12

Testors plastic crank case engines - Page 2 Dart__13

Testors plastic crank case engines - Page 2 Dart__14

The Dart (0.5cc diesel) crankcase was originally reused for the DC Bantam (0.8cc, .049 glow) but the crankcase was beefed up for the Wasp and the Bee and externally much larger.

However, the comment made me wonder if the radial mount fitted the Dart - the mount holes do match the Cox Bee (something I didn't know!).

Alas, no chance -

Testors plastic crank case engines - Page 2 Dart__15

Testors plastic crank case engines - Page 2 Dart__16

The threads are not the same and, even if they were, the depth of the tank back plate would foul the crankshaft.

So I am afraid that the statement is incorrect with regard to the DC Dart but omits the DC Wasp and the DC Bee.

We live and learn - obviously this was Davis-Charlton's attempt to replace the Cox Bee.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2682
Join date : 2011-11-16
Age : 65
Location : England

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  GWILLIEFOX on Sun Oct 30, 2016 7:22 pm

Hmmm

Testors plastic crank case engines - Page 2 Img_2310
Testors plastic crank case engines - Page 2 Img_2311
GWILLIEFOX
GWILLIEFOX
Rest In Peace
Rest In Peace

Posts : 304
Join date : 2014-12-23
Age : 76
Location : Beaver Falls, PA

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  ian1954 on Mon Oct 31, 2016 5:45 am

Thanks for the picture. I love anomalies! This article was produced in 1985

http://www.modelenginenews.org/prod/ofw_dart.html

D-C Charlton production ceased in 1983

http://www.modelenginenews.org/prod/ofw_dart.html

The picture you have kindly posted is definitely a D-C Dart but I wonder what the origin of the radial tank is.

http://www.modelenginenews.org/ad/bantam.html

I have never seen a mention or an advert for a radial tank for the Dart but now I have a project to make a Wasp mount fit!

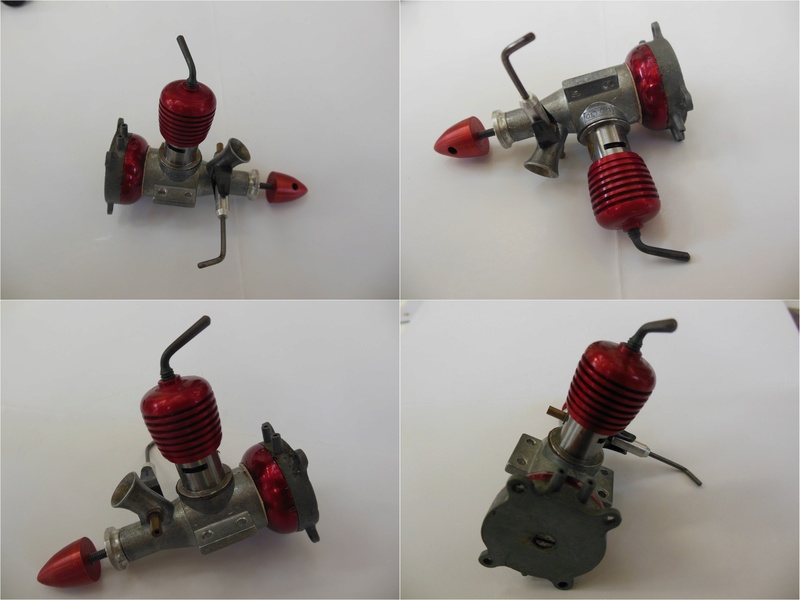

This is the only Diesel I know of with a DC radial mount

Testors plastic crank case engines - Page 2 Dc_was10

A Wasp "Special".

Thank you again for the photo.
ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2682
Join date : 2011-11-16
Age : 65
Location : England

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  GWILLIEFOX on Mon Oct 31, 2016 9:38 am

Ian, having plowed through over 300 Foxes made during a period spanning 67 years, I'm no stranger to anomalies.  I do wish I could tell you more about my Dart tank.  I got the engine in its box at a local swap meet in 2011.  It was complete with all papers, the cylindrical tank, and this tank.  I would think you would have seen a tank like this in the UK, maybe by Keilkraft.  My engine was sold by a dealer in the USA.  I doubt any US manufacturer would have made an accessory tank for a British diesel.  So we have a mystery!

The idea of a Cox pattern would have been a sound decision.  Hundreds of planes were designed for a Cox engine and being able to use your engine in them would have been an attractive option.

I guess one could have turned down and threaded the front end of a Wasp tank, but I don't seeing this being done in the US.

Testors plastic crank case engines - Page 2 Img_3210
Testors plastic crank case engines - Page 2 Img_3211
Testors plastic crank case engines - Page 2 Img_3212
GWILLIEFOX
GWILLIEFOX
Rest In Peace
Rest In Peace

Posts : 304
Join date : 2014-12-23
Age : 76
Location : Beaver Falls, PA

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Bambi

Post  GWILLIEFOX on Mon Oct 31, 2016 9:42 am

The outstanding little Bambi .009

Testors plastic crank case engines - Page 2 Img_3214
Testors plastic crank case engines - Page 2 Img_3213
Testors plastic crank case engines - Page 2 Img_3216
Testors plastic crank case engines - Page 2 Img_3217
Testors plastic crank case engines - Page 2 Img_3215
GWILLIEFOX
GWILLIEFOX
Rest In Peace
Rest In Peace

Posts : 304
Join date : 2014-12-23
Age : 76
Location : Beaver Falls, PA

Back to top Go down

Testors plastic crank case engines - Page 2 Empty Re: Testors plastic crank case engines

Post  ian1954 on Mon Oct 31, 2016 4:35 pm

The Allbon Bambi is a superb little engine. I have a couple of these but no box.

http://www.modelenginenews.org/cardfile/bambi.html

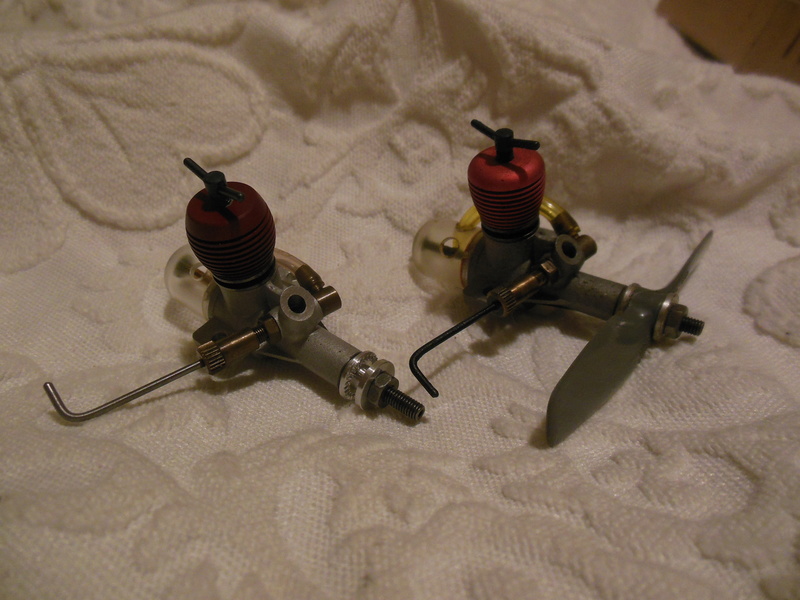

I also have a couple of Russian "clones" - which, I am loathe to say, are much better performers.

Testors plastic crank case engines - Page 2 Racer_10

The original Bambis are extremely collectable but delicate. I have repaired a few of them - damage nearly always caused by flooding that diesels are susceptible to.

I have not yet seen an Allbon original - only DC versions.

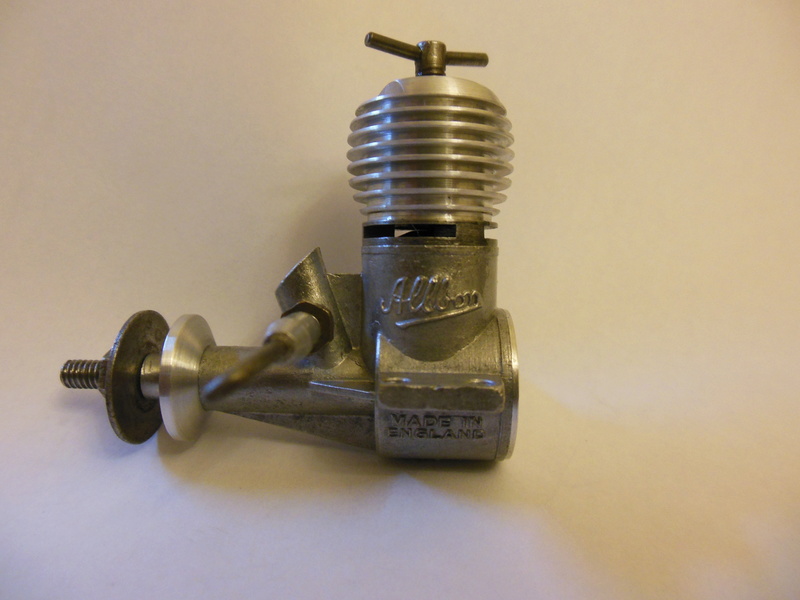

I also like the Allbon Dart.

Testors plastic crank case engines - Page 2 Albon_10

The smallest production diesel engine in the world was outdone by Allen Engineering with the AE 0.1cc.

Testors plastic crank case engines - Page 2 Ae_die10

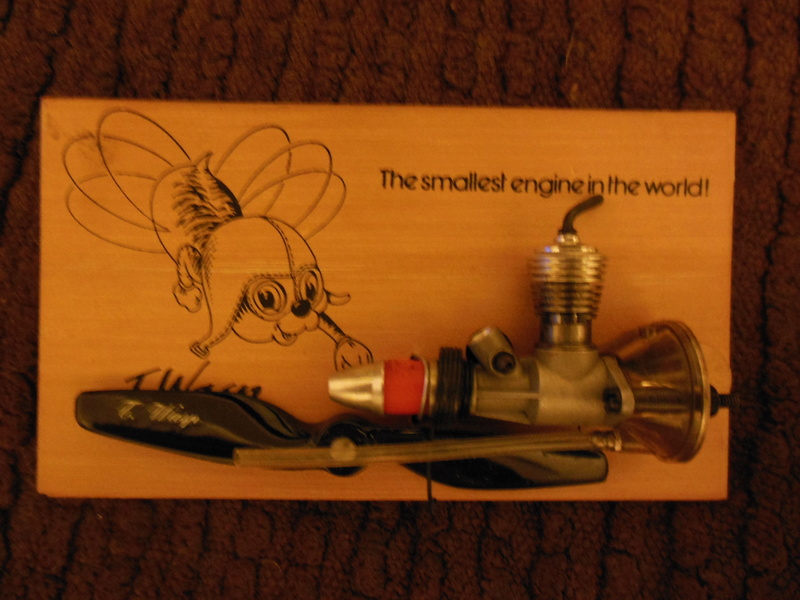

A claim also made by the British T.Wasp (although not a production engine)

Testors plastic crank case engines - Page 2 T_wasp10

I take your point about the radial mount on the Dart and I forwarded the details you posted to a DC collector who has all the DC and Allbon engines and variants ever produced together with adverts, leaflets and paper work (and some prototypes!). You have an engine setup he hasn't got! I expect I will be making one soon!

ian1954
ian1954
Diamond Member
Diamond Member

Posts : 2682
Join date : 2011-11-16
Age : 65
Location : England

Back to top Go down
