András, dear friend, I think you were enthusiastic about building a P-51, if so, then I am very happy, the model is very beautiful, it really is.
Everything you need in the step by step, any doubt, please let me know and according to what I am learning in this construction, I will gladly transmit it to you.

MauricioB Thu Aug 11, 2022 11:36 am

well here we go with the main landing gear.
The plane of this model aircraft does not have landing gear, so I have incorporated material into the structure to be able to carry one, here I show in the photos.

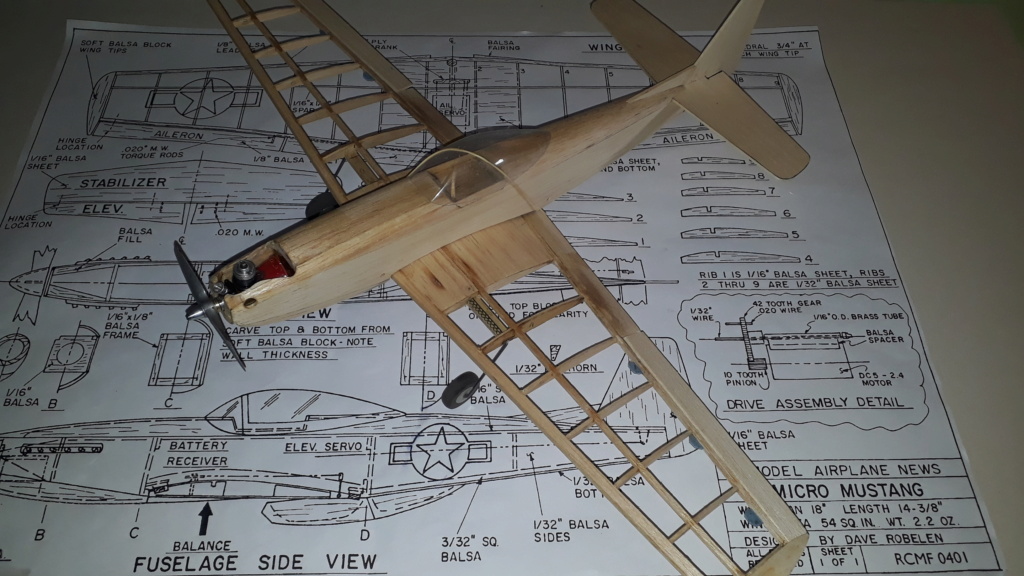

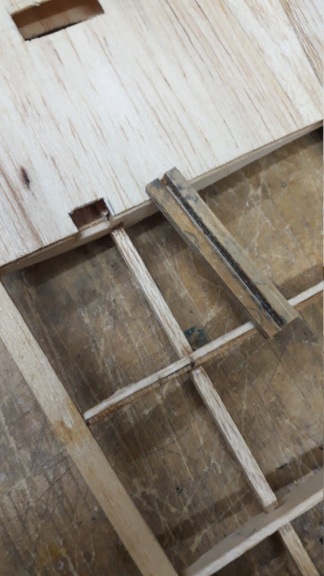

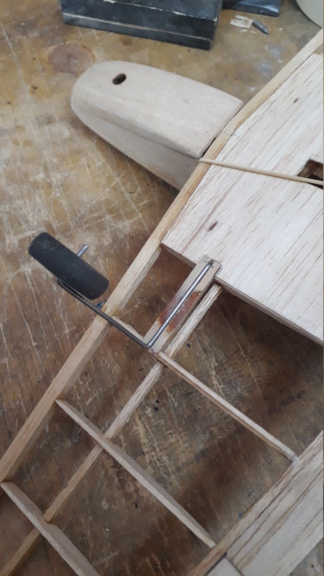

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2116

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2117

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2118

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2119

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2120

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2121

Be careful!, do not climb, do not want to fly!, everything is pre-assembled and loose there! LOL

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2122

balogh Thu Aug 11, 2022 4:27 pm

Thanks Mauricio, I am definitely planning to build another RC bird for my 010-s, in addition to the Sharkface, that weighs 160 grams. I want a lighter, faster ship.

I will approach you for advice once I start bulding the Mustang. And I cannot wait to see the maiden flight of yours!

MauricioB Sat Aug 13, 2022 1:45 am

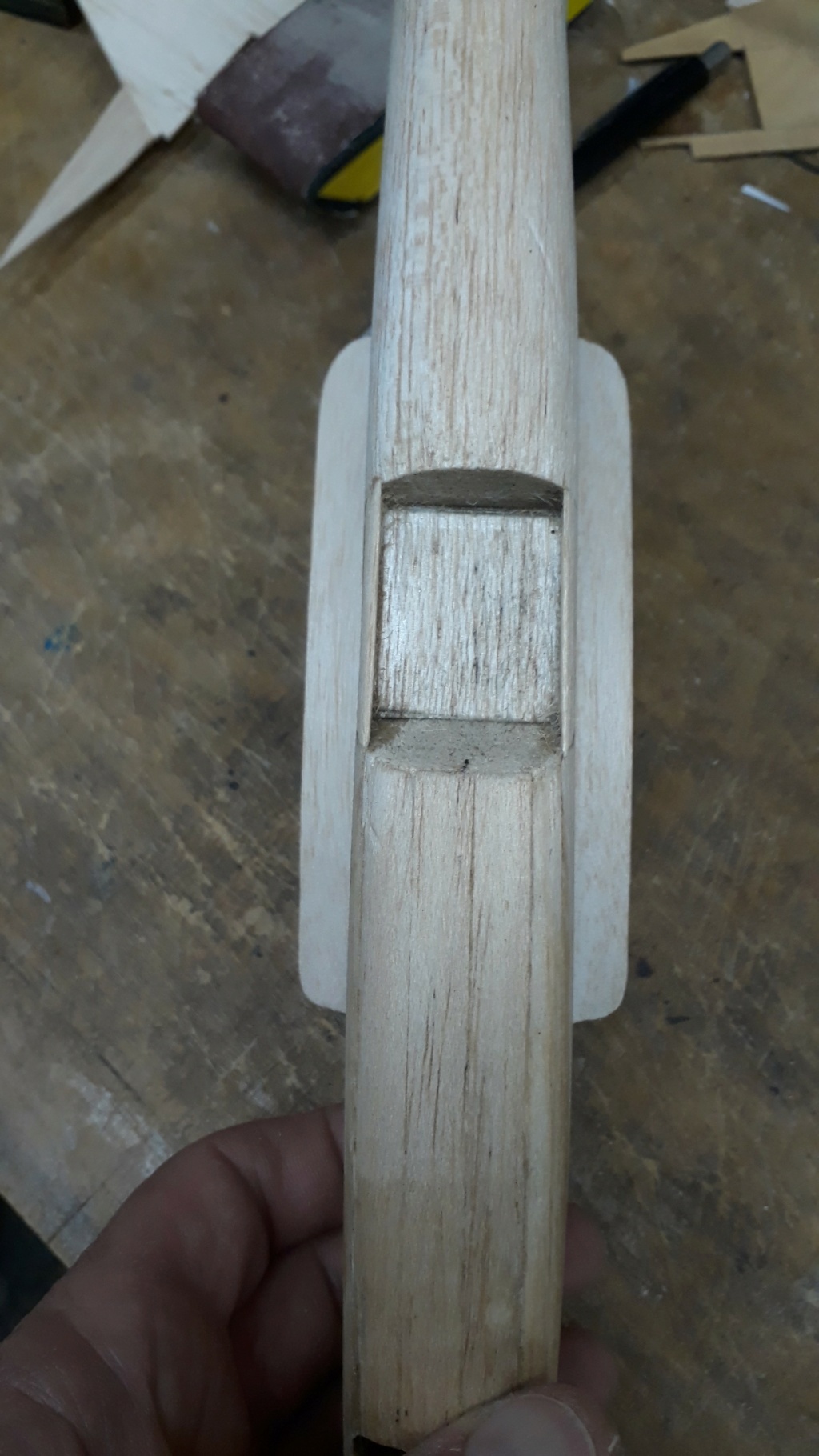

Well, I don't exactly know the name of these parts, but they are the continuation of the fuselage to achieve a larger wing seat, that is, a larger contact surface.
(attention: these are two pieces of wood glued with ciano drops, once they are carved the same, I separate them with the knife)

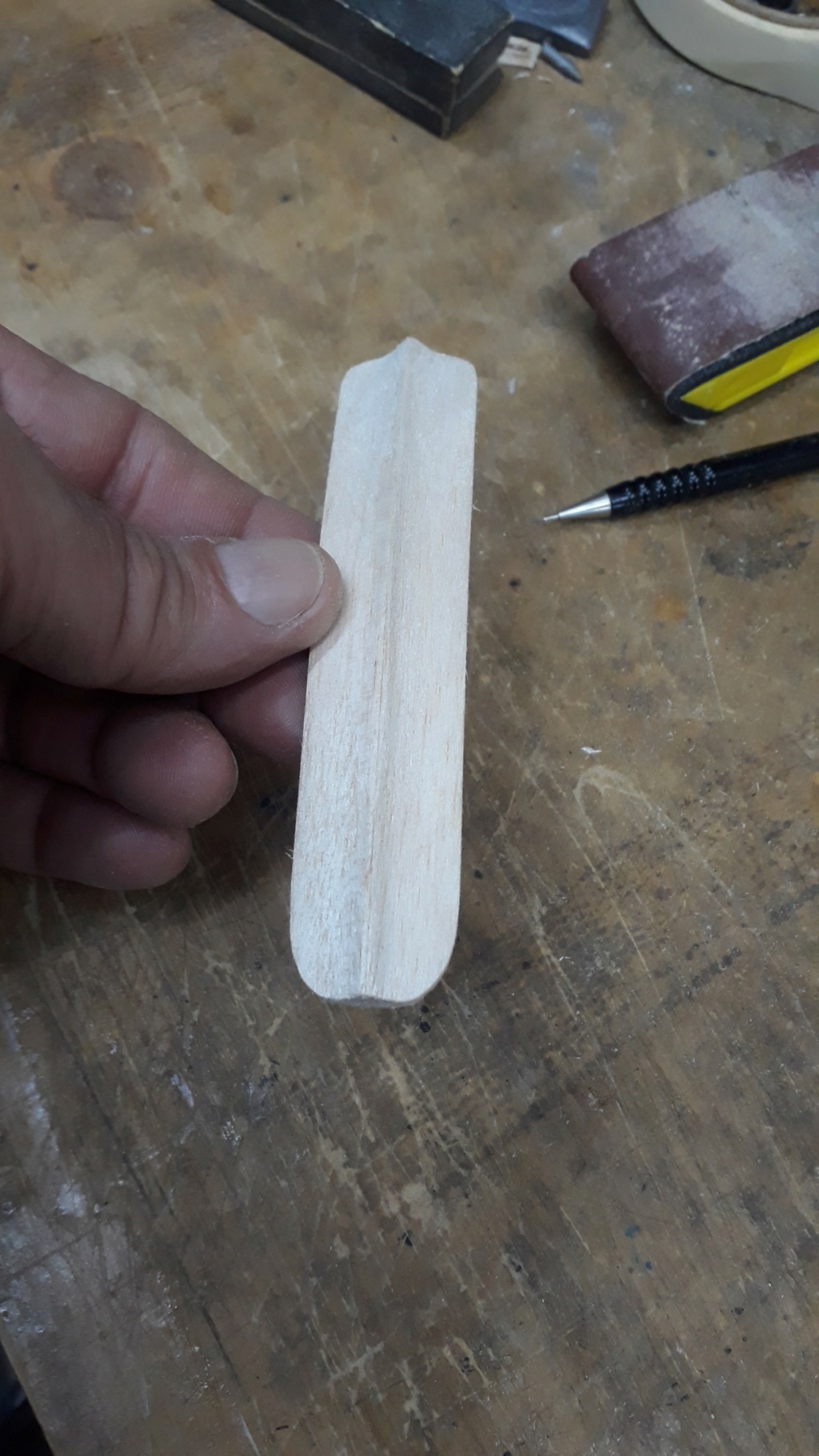

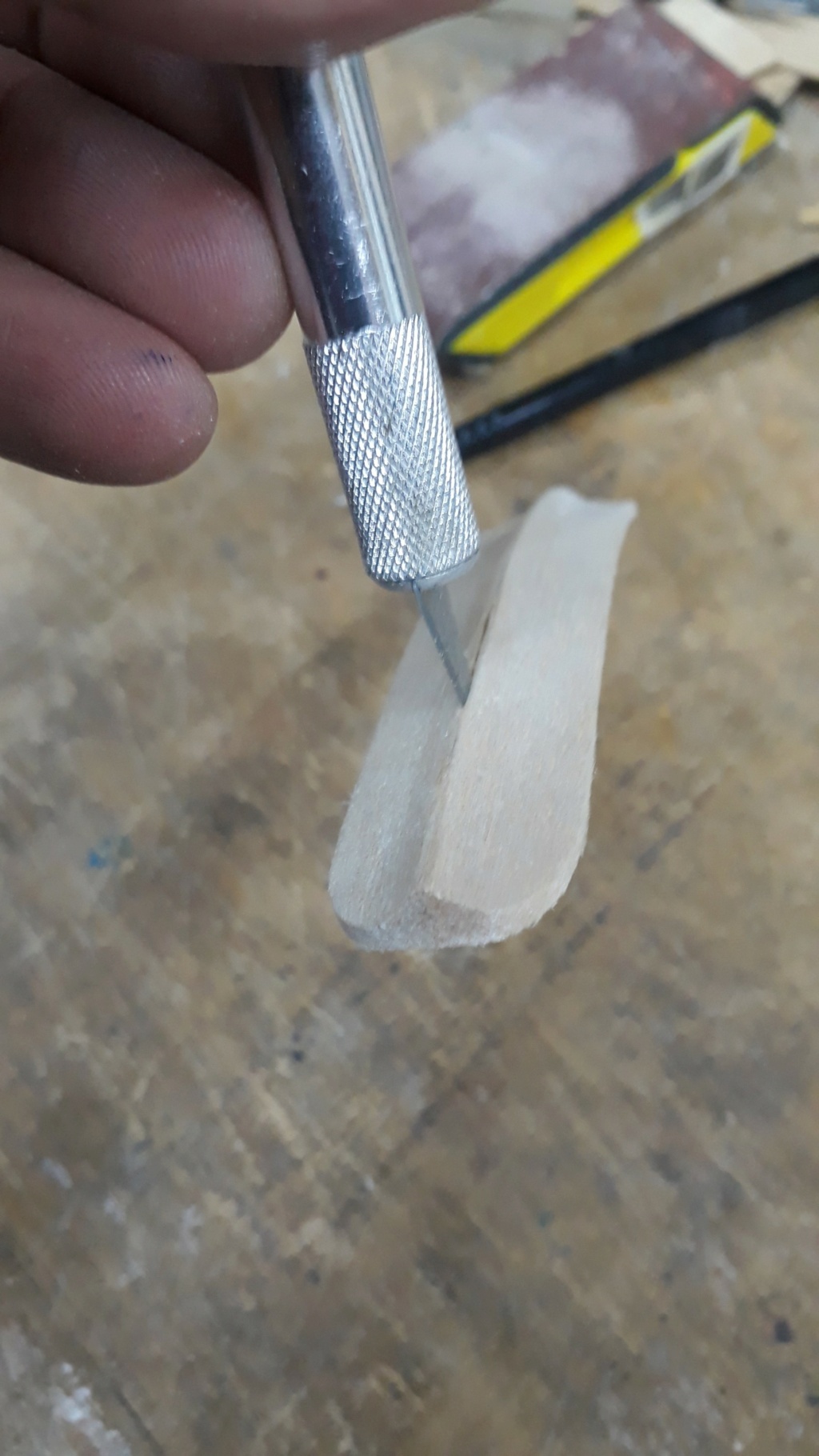

Here in the photos, the process....

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2125

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2123

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2124

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2127

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2126

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2128

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2129

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2130

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2131

balogh Sat Aug 13, 2022 4:31 am

Mauricio,

I am also not a native English speaker, but would call them wing saddle. Not only useful to better distribute the load between the wing and fuselage, but with a smooth transition between the wing and fuselage, these saddles will improve the aerodynamics of the Mustang, for sure.

I saw you have added a layer of glue on the inside of the wing center sheeting? What is this glue, something light and strong as CA?

getback Sat Aug 13, 2022 7:15 am

Well after I looked up Kiri wood and learned all I need to know about it LOL ,, I see you have decided to use the rubber band method of attaching the wing to the fuse. I was wondering if you would use that , Good job on making the saddles. The incorporating of the landing gear really looks good . Looks like a P-51 Mustang to me Beer Cheers

GallopingGhostler Sat Aug 13, 2022 9:11 am

balogh wrote:Mauricio, I am also not a native English speaker, but would call them wing saddle. Not only useful to better distribute the load between the wing and fuselage, but with a smooth transition between the wing and fuselage, these saddles will improve the aerodynamics of the Mustang, for sure.

If it is to make it easier to mount the wing, then it is a saddle. If it is to give a smooth transition between wing and fuselage for aerodynamic purposes, then the English word is, "WING FILLET" (magyarul "törzsig a szárny filé", if these on-line translators are correct. Doh!

)

Sobre los idiomas, lo sé usted es un húngaro, yo también no soy un hispanohablante (pregunta a @944_Jim Very Happy

), pero lo intento duro. About languages, I know you are a Hungarian, I am also not a Spanish speaker (ask Jim), but I try hard. Laughing

balogh Sat Aug 13, 2022 9:50 am

Thanks George, the Hungarian terminology is accurate... Very Happy

MauricioB Sat Aug 13, 2022 11:05 am

balogh wrote:Mauricio,

I am also not a native English speaker, but would call them wing saddle. Not only useful to better distribute the load between the wing and fuselage, but with a smooth transition between the wing and fuselage, these saddles will improve the aerodynamics of the Mustang, for sure.

I saw you have added a layer of glue on the inside of the wing center sheeting? What is this glue, something light and strong as CA?

Thanks to all for the clarifications!...
András, I don't know exactly the point or photo you are asking me, but I have given the structure of the wing and fuselage a very light coat of DOPE 50% and Thinner 50%, which makes it firmer.
The wing in the center will have a strip of doped silkspan paper to reinforce the central joint, but I haven't gotten to that point yet.
If I can't answer your question, please let me know!

balogh Sat Aug 13, 2022 12:49 pm

Sorry Mauricio it was my mistake. I looked through the wing fins and thought what I saw was the backside of wing sheeting. In fact it was the table top. Very Happy

MauricioB Mon Aug 15, 2022 11:25 am

And here the manufacture of the air intake for the radiator...

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2134

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2133

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2132

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2137

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2136

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2135

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2138

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2139

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2140

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2141

Levent Suberk Mon Aug 15, 2022 11:28 am

Perfect work as always Very Happy

MauricioB Fri Aug 19, 2022 2:30 am

Here I show how the train is held by means of two screws.

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2142

A few more advances in the wing and the joints with the fuselage, everything is going very well....I really like this model, every step, I like it more!!!

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2143

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2144

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2145

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2147

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2148

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2149

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2150

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2151

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2152

Levent Suberk Fri Aug 19, 2022 2:35 am

Landing gear wire screws need washers to retain wire more securely?

getback Fri Aug 19, 2022 7:59 am

She's looking really Good , I like the way it has a lot of curves in it Very Happy

I know you got the landing gear glued in but, it would not hurt with some washers on the screws to give more strength. RC Plane

It is going to look Nice when covered and fling Popcorn

MauricioB Sun Aug 21, 2022 5:18 pm

Yes friends, I had thought about placing washers, but after seeing that each train was really well secured with just the head of the screw, then I decided not to place washers. So, Levent and Eric's suggestions made me rethink it and so I decided to put washers, of course it's much safer that way. Thanks friends!

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2153

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2154

Some more progress...

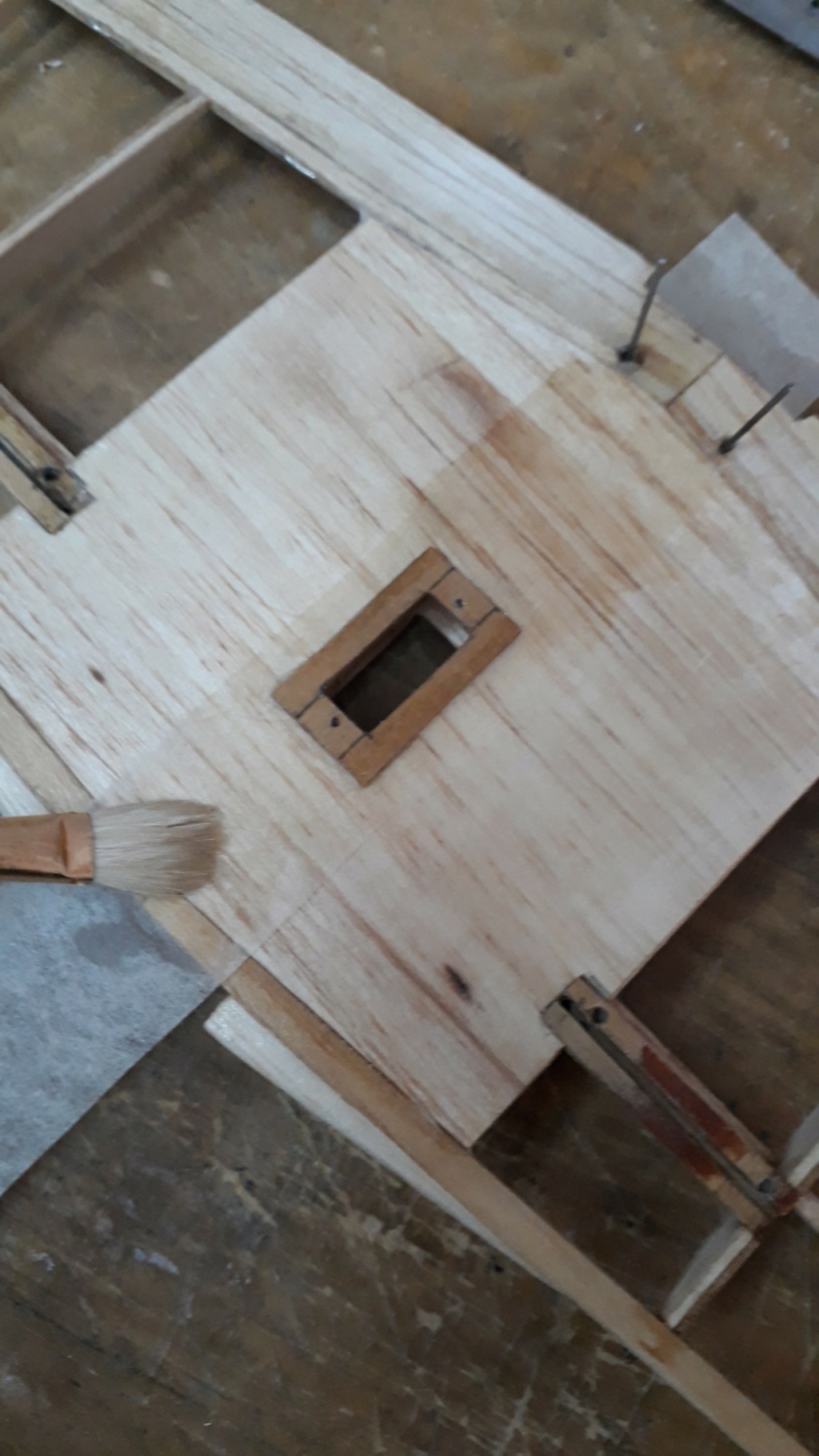

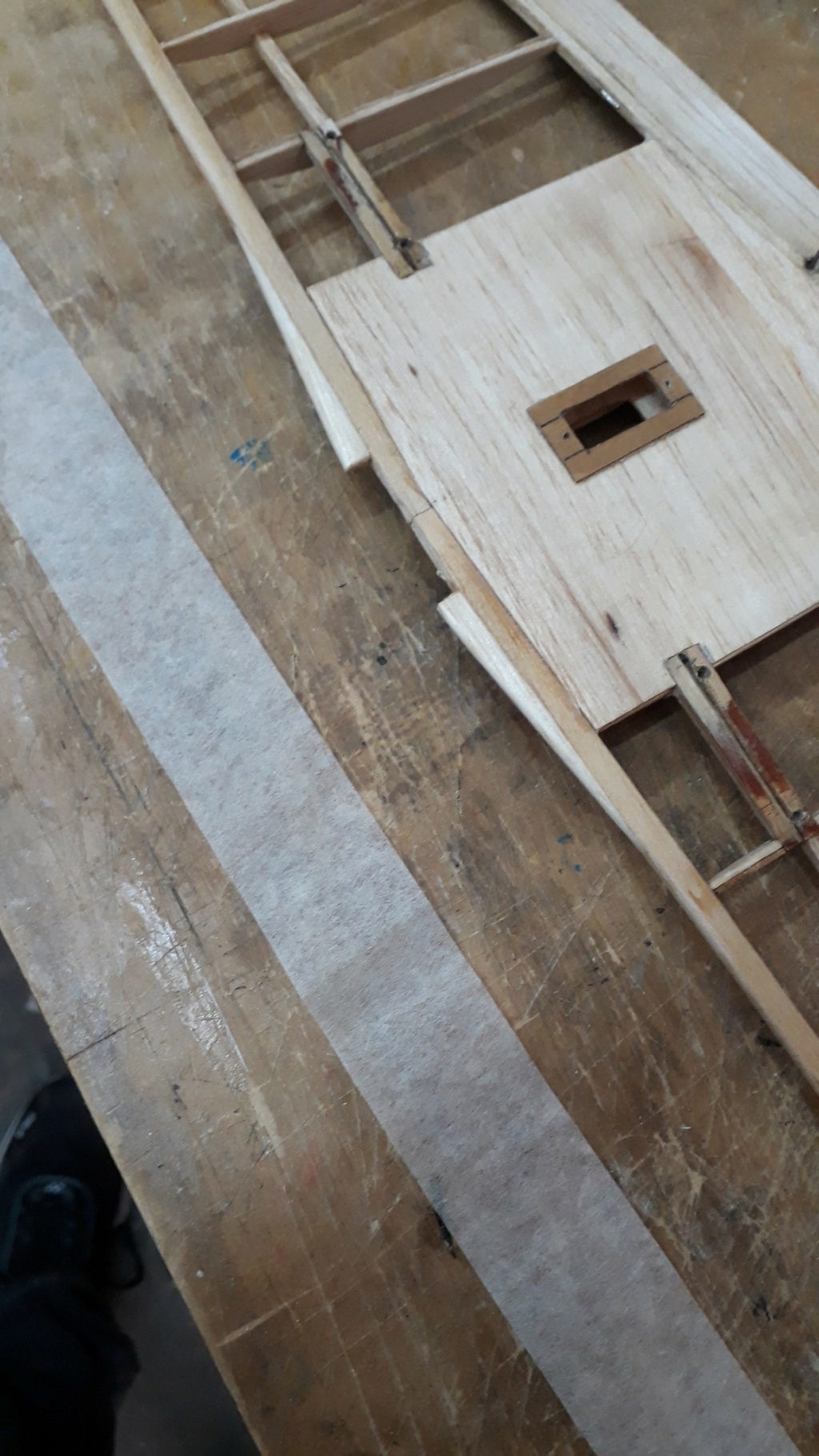

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2155

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2156

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2157

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2158

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2160

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2159

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2161

MauricioB Mon Aug 22, 2022 12:39 am

and here I go with the manufacture of the fuel tank:
Well, I have used cyanoacrylate, in total about 8 mg, with the cyano container, in most of the assembly of this model aeroplane, I recycle it and make the fuel tank, here are the photos.

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2163

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2164

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2165

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2166

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2167

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2168

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2169

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2170

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2171

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2172

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2173

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2174

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2175

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2176

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2177

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2179

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2180

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2181

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2182

balogh Mon Aug 22, 2022 12:45 am

Great job, way to go Mauricio. What is that grey material - looks like sponge, but cannot be - that you stuffed into the tank neck insert as stopper, holding the fuel and vent lines?

MauricioB Mon Aug 22, 2022 12:50 am

balogh wrote:Great job, way to go Mauricio. What is that grey material - looks like sponge, but cannot be - that you stuffed into the tank neck insert as stopper, holding the fuel and vent lines?

Thank you very much dear friend for your comment.
What you see as a sponge is a hard rubber block, here they sell it as a rubber block for sandpaper:

https://articulo.mercadolibre.com.ar/MLA-920577002-taco-de-goma-para-lija-chico-50x95mm-_JM?matt_tool=14065579&matt_word=&matt_source=google&matt_campaign_id=14508409190&matt_ad_group_id=124055975182&matt_match_type=&matt_network=g&matt_device=c&matt_creative=543394189895&matt_keyword=&matt_ad_position=&matt_ad_type=pla&matt_merchant_id=547444866&matt_product_id=MLA920577002&matt_product_partition_id=1427499882874&matt_target_id=pla-1427499882874&gclid=Cj0KCQjwr4eYBhDrARIsANPywCiKauSdhOdQpfS6bMySmdKe9J9eqxQQy73bdNP0tsTjyCuedqn_RIkaAjOdEALw_wcB

MauricioB Mon Aug 22, 2022 1:49 am

And here's a big surprise!!!....it was a coincidence!! Very Happy

You may know but I didn't, I was playing my Cox .010 in the P-51 Mustang and wondering what a Cox .020 would look like in there...to my surprise it can be put straight in with virtually no major modifications , just make another hole for the carburetor needle and nothing else!!!
The Cox .020 bench matches the Cox .010 reservoir! So the P-51 Mustang could enjoy it with either engine!...great!!!

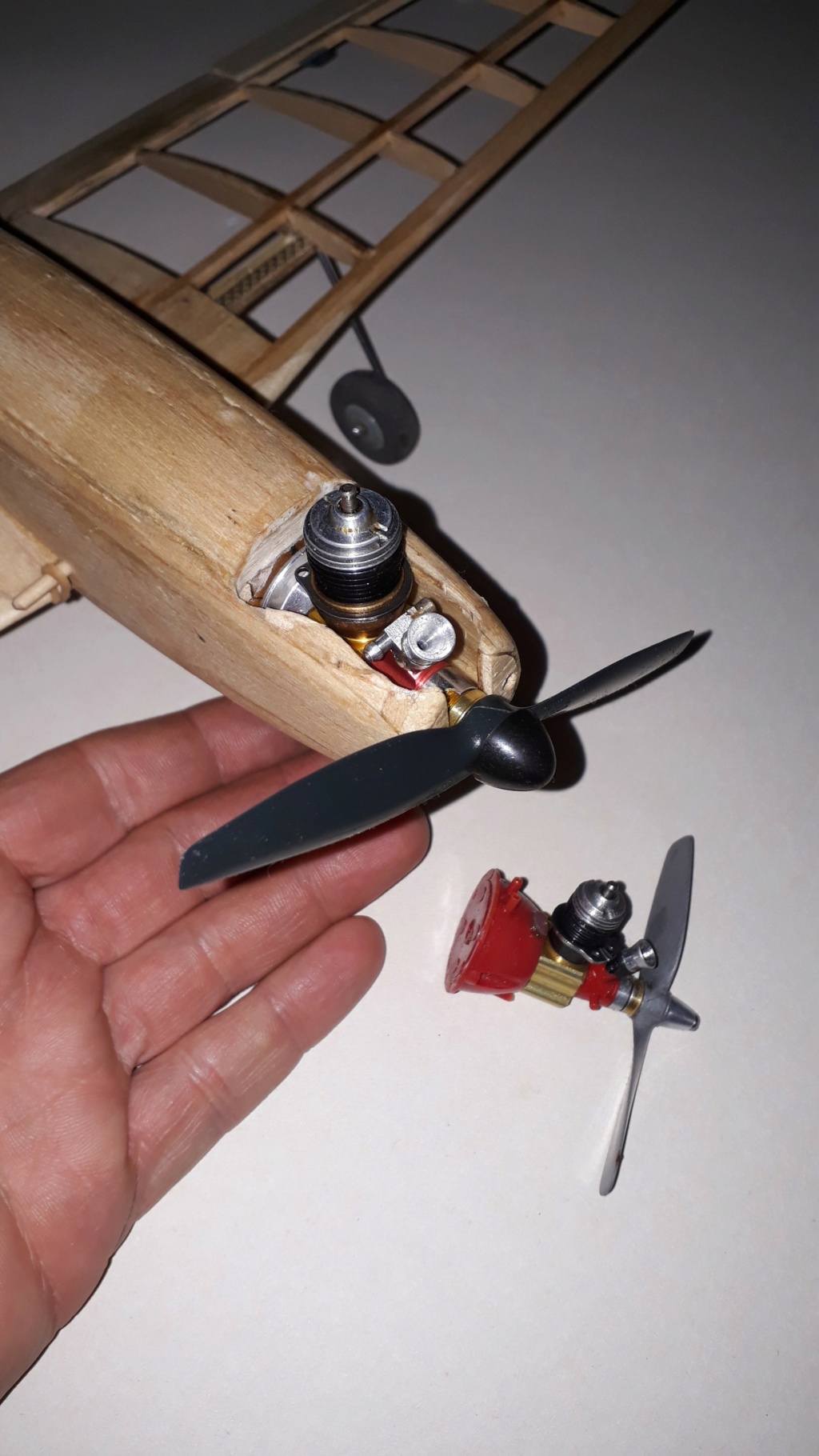

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2183

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2184

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2185

Another Cox .010 converted to R/C & P-51 Mustang. (Flight page 5) - Page 3 Img-2186

balogh Mon Aug 22, 2022 5:29 am

Yes, Mauricio, I always build bulkheads that accommodate either the 010 with tank, or the 020 TeeDee without tank/with backplate. The stock mounting screw distances are a bit different, though.

getback Mon Aug 22, 2022 5:35 am

Excellent my friend the work on the tank and the retro fit with .010 or .020 and it looks good setting in there ! cheers

rdw777 Mon Aug 22, 2022 5:25 pm

Nice work on your Mustang Mauricio, very inspiring …. Also, I like the use of the brass connectors for aileron control horns…. Looks like you could adjust their height as needed for control throw by re-soldering if needed…. Muy sabio…

MauricioB Mon Aug 22, 2022 7:54 pm

rdw777 wrote:Nice work on your Mustang Mauricio, very inspiring …. Also, I like the use of the brass connectors for aileron control horns…. Looks like you could adjust their height as needed for control throw by re-soldering if needed…. Muy sabio…

Thank you very much for your comment!
