Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  OVERLORD Tue Jan 29, 2019 9:01 am

rsv1cox wrote:
NEW222 wrote:Do you have a picture of the original? May be able to make a tin version if the shape and dimensions were known.

Wish I did have a picture of one outside the car.

Cox Pinto Funny Car - Almost to easy - Page 2 Pinto_13

This one?

Cox Pinto Funny Car - Almost to easy - Page 2 Cox-0411

There's also this:

Cox Pinto Funny Car - Almost to easy - Page 2 Cox-pi10

https://www.worthpoint.com/worthopedia/cox-pinto-funny-car-stinger-more-fuel-537078262
OVERLORD
OVERLORD
Diamond Member
Diamond Member

Posts : 1799
Join date : 2013-03-19
Age : 58
Location : Normandy, France

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  getback Tue Jan 29, 2019 10:06 am

Darn thats small (1" H, 1" L, 1/4" W) the width is the killer i ck'ed my small tanks and had something other than the W , Rene may have the ticket with Roddie and those pc.s he has or maybe Jason can whip out a usable one (( making one that small would bee a test of patients ) Doh!
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10269
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  rsv1cox Tue Jan 29, 2019 10:19 am

Looks like the top one Lieven, original tank had two vent nipples on top.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10836
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Jason_WI Tue Jan 29, 2019 12:53 pm

Like this?

The square tank is 1” x 1” x .25”. The fuel ports are .1” dia with a .0625” hole. Volume of the tank is .825”x .825”x .150”

Nylon is already loaded in the printer with a .25mm nozzle.

Cox Pinto Funny Car - Almost to easy - Page 2 48d9c810
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  rsv1cox Tue Jan 29, 2019 12:59 pm

So you can make one Jason? Smile

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10836
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Jason_WI Tue Jan 29, 2019 1:22 pm

Yep. I can bridge the top gap without any support. I can manually add support to the bottom port.
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  rsv1cox Tue Jan 29, 2019 2:16 pm

Jason_WI wrote:Yep. I can bridge the top gap without any support. I can manually add support to the bottom port.

A......mazing - Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10836
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Marleysky Tue Jan 29, 2019 2:25 pm

Jason_WI wrote:Like this?

The square tank is 1” x 1” x .25”. The fuel ports are .1” dia with a .0625” hole. Volume of the tank is .825”x .825”x .150”

Nylon is already loaded in the printer with a .25mm nozzle.

Cox Pinto Funny Car - Almost to easy - Page 2 48d9c810

Jason, that’s AWESOME!
Marleysky
Marleysky
Top Poster
Top Poster

2022 Supporter

Posts : 3618
Join date : 2014-09-28
Age : 71
Location : Grand Rapids, MI

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  roddie Tue Jan 29, 2019 4:49 pm

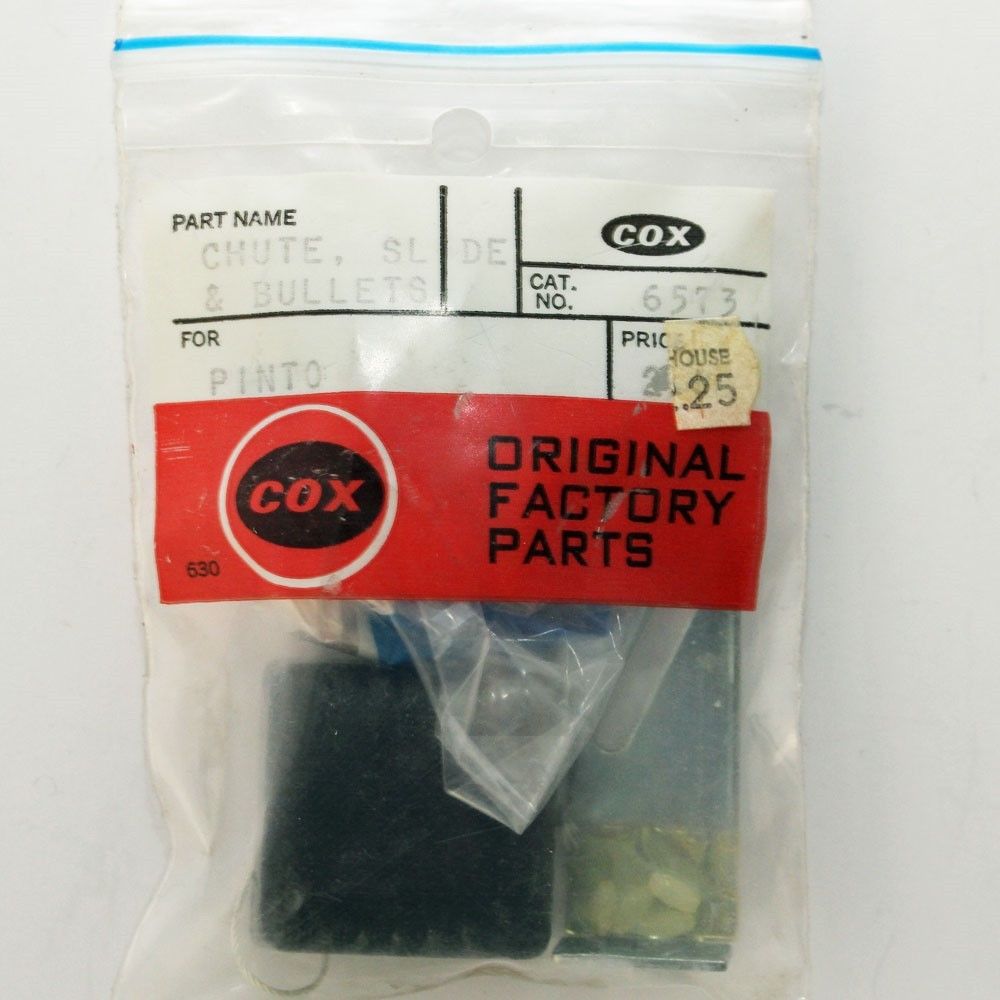

There may be a hint here..

Cox Pinto Funny Car - Almost to easy - Page 2 _5710
Cox Pinto Funny Car - Almost to easy - Page 2 _57-b10

The manual will tell you for sure.. but it looks to me as though the parts called "bullets" are what close the throttle and deploy the drag-chute. I would guess that a single bullet is threaded-onto the guide-line (and maybe secured by a knot?)somewhere around 3/4 of the way down the track.  Huh...  Huh... ???

You may have also seen the below photos.. but I'll post em' because of their relevance..

Cox Pinto Funny Car - Almost to easy - Page 2 D5_sch10
Cox Pinto Funny Car - Almost to easy - Page 2 De_09610
roddie
roddie
Top Poster
Top Poster

Posts : 8449
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  NEW222 Tue Jan 29, 2019 5:47 pm

Oh wow. That's neat. I never would have thought there was a real Cox drag car. Thanks for sharing.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  roddie Tue Jan 29, 2019 6:08 pm

NEW222 wrote:Oh wow. That's neat. I never would have thought there was a real Cox drag car. Thanks for sharing.

Hey Chancey, I don't know the history behind the "Bill Schifsky" top-fuel car. The photos are ones that I sourced from the internet some time ago.. when searching "Google-Images" for Cox models. You'd be surprised at what comes-up.

Here's a full-scale Bill Schifsky "yellow-bodied" variant-photo..

Cox Pinto Funny Car - Almost to easy - Page 2 Coxpin10

Here's the balance of what I have on the Cox Pinto Funny-Car..

Cox Pinto Funny Car - Almost to easy - Page 2 -1971310
Cox Pinto Funny Car - Almost to easy - Page 2 -1971311
Cox Pinto Funny Car - Almost to easy - Page 2 E9a6b310
Cox Pinto Funny Car - Almost to easy - Page 2 Mpobc310
Cox Pinto Funny Car - Almost to easy - Page 2 Vintag10
roddie
roddie
Top Poster
Top Poster

Posts : 8449
Join date : 2013-07-17
Age : 64
Location : N. Smithfield, Rhode Island

http://www.stilburnin.com

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Jason_WI Wed Jan 30, 2019 1:15 am

Tanks are printing.

Cox Pinto Funny Car - Almost to easy - Page 2 C8370310
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Jason_WI Wed Jan 30, 2019 3:32 am

Tanks are done. Support material on bottom port was a bit difficult to remove but got it without breaking it off.

Pic with the top sealed up and with them complete.

Cox Pinto Funny Car - Almost to easy - Page 2 0a41f910
Cox Pinto Funny Car - Almost to easy - Page 2 224edf10
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  rsv1cox Wed Jan 30, 2019 6:12 am

roddie wrote:There may be a hint here..

The manual will tell you for sure.. but it looks to me as though the parts called "bullets" are what close the throttle and deploy the drag-chute. I would guess that a single bullet is threaded-onto the guide-line (and maybe secured by a knot?)somewhere around 3/4 of the way down the track.  Huh...  Huh... ???

You may have also seen the below photos.. but I'll post em' because of their relevance..
]

Thanks for those pictures roddie, helps a lot. I have never seen what those little "bullets" look like.

I did receive that manual bought on ebay for $13. + and near worthless. A reprint so light it's barely readable, cut at an angle and stapled together randomly. Gotta leave one of my very rare negative feedbacks.

And Jason. They look great. PM sent.

Bob
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10836
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  getback Wed Jan 30, 2019 7:56 am

Cool Bob you have been Hooked up !! Fishing Nice job on the tanks Jason Smoking
getback
getback
Top Poster
Top Poster

2022 Supporter

2023 Supporter

Posts : 10269
Join date : 2013-01-18
Age : 66
Location : julian , NC

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  NEW222 Wed Jan 30, 2019 5:16 pm

Good job Jason. Those look great.
NEW222
NEW222
Top Poster
Top Poster

Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Ken Cook Wed Jan 30, 2019 6:26 pm

Jason, that's cool stuff.
Ken Cook
Ken Cook
Top Poster
Top Poster

Posts : 5540
Join date : 2012-03-27
Location : pennsylvania

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Jason_WI Wed Jan 30, 2019 7:05 pm

Thanks guys. Hopefully they fit in that tiny spot. Guestimation approximation was enabled in this design.
Jason_WI
Jason_WI
Top Poster
Top Poster

2022 Supporter

Posts : 3123
Join date : 2011-10-09
Age : 49
Location : Neenah, WI

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty cox pinto parts new

Post  joeythefix Tue Jun 20, 2023 5:24 pm

i have a few BRAND NEW PARTS for your COX PINTO, I have 2 front tires in package NO RIMS, gas tank and the body stand chrome T rod. did you want these????
joeythefix
joeythefix
New Member
New Member

Posts : 3
Join date : 2023-06-13

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Cox Vega funny car vs Danny Ongais dragster race

Post  706jim Tue Jun 20, 2023 8:38 pm

Many years ago, we set up a drag race in the basement hallway of our local university. Vega funny car vs the "rail" dragster. No electric starters at the time....
We brought along wax for "burnouts" and set the two cars up to race down the guide strings.
Our biggest problem was getting both engines started at about the same time.
Actual results? (Honest would I lie to this group?)
The funny car beat the dragster off the line but the dragster caught up on the top end to pass the funny car.

Honest
706jim
706jim
Gold Member
Gold Member

Posts : 461
Join date : 2013-11-29

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  rsv1cox Wed Jun 21, 2023 6:48 pm

I started this thread back in January 2019, an oldie.

Jason stepped in a helped get it running again. He built (3D printer) new front axles and a fuel tank, much appreciated as both work great.

Cox Pinto Funny Car - Almost to easy - Page 2 P1015575
Cox Pinto Funny Car - Almost to easy - Page 2 P1015574
Cox Pinto Funny Car - Almost to easy - Page 2 P1015573
Cox Pinto Funny Car - Almost to easy - Page 2 P1015576
Cox Pinto Funny Car - Almost to easy - Page 2 P1015577
rsv1cox
rsv1cox
Top Poster
Top Poster

2022 Supporter

2023 Supporter

2024 Supporter

Posts : 10836
Join date : 2014-08-18
Location : West Virginia

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty THAT PART YOUR TALKING ABOUT CALLED [BULLET] i never knew that, I HAVE THE ORIGINAL ONE

Post  joeythefix Wed Jun 21, 2023 7:46 pm

rsv1cox wrote:
roddie wrote:There may be a hint here..

The manual will tell you for sure.. but it looks to me as though the parts called "bullets" are what close the throttle and deploy the drag-chute. I would guess that a single bullet is threaded-onto the guide-line (and maybe secured by a knot?)somewhere around 3/4 of the way down the track.  Huh...  Huh... ???

You may have also seen the below photos.. but I'll post em' because of their relevance..
]

Thanks for those pictures roddie, helps a lot.  I have never seen what those little "bullets" look like.

I did receive that manual bought on ebay for $13. + and near worthless.  A reprint so light it's barely readable, cut at an angle and stapled together randomly.  Gotta leave one of my very rare negative feedbacks.

And Jason.  They look great.  PM sent.

Bob
joeythefix
joeythefix
New Member
New Member

Posts : 3
Join date : 2023-06-13

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Admin Thu Jun 22, 2023 12:38 am

@joeythefix ???

If you added anything, your message must not have gone through. It looks like you only quoted rsv1cox's message (who quoted roddie) above.

_________________
-Jacob


Admin
Admin
Administrator

Posts : 6486
Join date : 2010-07-27
Location : Roseville, Minnesota

http://sites.google.com/site/coxenginecollection/

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Doug Quaid Sat Jul 01, 2023 1:20 pm

nice!
Doug Quaid
Doug Quaid
New Member
New Member

Posts : 3
Join date : 2020-07-17

Back to top Go down

Cox Pinto Funny Car - Almost to easy - Page 2 Empty Re: Cox Pinto Funny Car - Almost to easy

Post  Sponsored content


Sponsored content


Back to top Go down

Page 2 of 2 Previous  1, 2

Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
