Another proposed design by Roddie
Page 2 of 7
Page 2 of 7 • 1, 2, 3, 4, 5, 6, 7
Re: Another proposed design by Roddie
Looking Good Roddie, Got a Fire lit under me to Start Building Again Too,Thanks
akjgardner- Diamond Member
Posts : 1554
Join date : 2014-12-28
Age : 65
Location : Greensberg Indiana
Re: Another proposed design by Roddie
akjgardner wrote:Looking Good Roddie, Got a Fire lit under me to Start Building Again Too,Thanks
Thank You Joe!
![Thumbs Up](/users/3015/29/34/60/smiles/1541798026.gif)
![Cool](https://2img.net/i/fa/i/smiles/icon_cool.gif)
![Another proposed design by Roddie - Page 2 0221110](https://i.servimg.com/u/f76/18/50/45/90/0221110.jpg)
![Another proposed design by Roddie - Page 2 Cardbo10](https://i.servimg.com/u/f76/18/50/45/90/cardbo10.jpg)
I liked those models a LOT.. and I'm glad to be a catalyst to get you inspired to build again!
![Thumbs Up](/users/3015/29/34/60/smiles/1541798026.gif)
![Thumbs Up](/users/3015/29/34/60/smiles/1541798026.gif)
engine-mount/nose-reinforcement
Trying to K.I.S. here.. but I'm also designing on the fly.. using materials that I have in stock. I need to provide some space for an external fuel-supply (tank) for the Cox .049 product-engine option. The "cheek-blocks" found in some traditional 1/2A profile kit-designs for reed-valve engines prohibit this. As in my previous designs, I use the vertical hardwood-blocks combined with plywood nose-doublers to form a rigid "T" engine-mounting which leaves some room behind the mounting, for a hard-tank.
![Another proposed design by Roddie - Page 2 Nose_c10](https://i.servimg.com/u/f76/18/50/45/90/nose_c10.jpg)
I'm marking-up the drawing as I go.. and will compile a "stock-list" on completion.
![Another proposed design by Roddie - Page 2 Nose_c10](https://i.servimg.com/u/f76/18/50/45/90/nose_c10.jpg)
I'm marking-up the drawing as I go.. and will compile a "stock-list" on completion.
Re: Another proposed design by Roddie

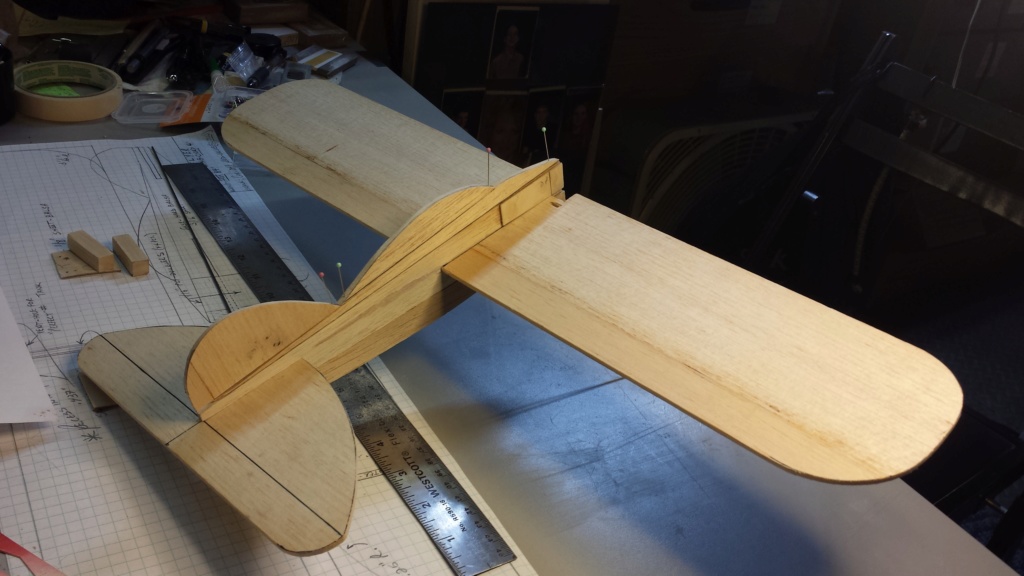

Its getting assembled!!!! Looking good. So if I am not mistaking, it is a 1/4" fuselage with 1/16" doublers on the sides? I now understand the 'ridgid t' as mentioned earlier. Looks good and strong up there.
NEW222- Top Poster
- Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb
Re: Another proposed design by Roddie
NEW222 wrote:Its getting assembled!!!! Looking good. So if I am not mistaking, it is a 1/4" fuselage with 1/16" doublers on the sides? I now understand the 'ridgid t' as mentioned earlier. Looks good and strong up there.
Yes it is! Thanks again Chancey!! The fuse is actually 3/16" (4.76mm) thickness balsa. It's relatively dense-wood though.. or else I would have chosen thicker stock. It's a combination of "B and C-grain".. which is what you'd want to use where strength is a consideration.. but not overkill/hard-grade wood.. which can be heavy. The nose-doublers are listed on my drawing as 1/16" plywood.. but I actually used a "single-ply" of .055" (1.4mm) Baltic-Birch.. as an experimental material. You won't find it for sale anywhere though. The material is "scrap".. procured from a CNC machining-process where I work. If you desire some of this stock, I have plenty that I could mail to you. It is also the stock that I am using (laminating x2 thicknesses; cross-grain) for the firewall.
The "rigid T"...
![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
![Laughing](https://2img.net/i/fa/i/smiles/icon_lol.gif)
Re: Another proposed design by Roddie
roddie wrote: but it will hopefully contain the engine to the airframe, if the model meets terra firma in a "less than graceful manner"..
Hi again roddie. I am in no way saying to do this, but just an idea I have used before. I cannot say or guarantee that it does work 100%, but does add strength to the engine mounts. Where the light blue 'X' is, drill a hole of proper size right through the upright engine mounts (this includes through the fuselage as well). From there, insert your choice of bracing (red line in picture above the 'X;'). I have used both hard wood toothpicks as well as bamboo skewers (this is why I said drill accordingly). I fill the hole with either epoxy or wood glue, then insert my brace of choice and allow to dry. When dry, just cut off the ends and sand flush. To me, it is extra security for holding things to the fuselage. I would do one brace above the wing, and one brace below the wing. This is just my $.02.
![Very Happy](https://2img.net/i/fa/i/smiles/icon_biggrin.png)
![Another proposed design by Roddie - Page 2 Nose_c10](https://i.servimg.com/u/f97/17/06/32/56/nose_c10.jpg)
NEW222- Top Poster
- Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb
fuse-contouring using the French-curve
Here's an example of what I came up with for adding contours to the fuse, using a French-curve.
![Another proposed design by Roddie - Page 2 Fuse_c10](https://i.servimg.com/u/f76/18/50/45/90/fuse_c10.jpg)
The top-side of the nose; fairing back-into the canopy, needs a little attention.. but I'm satisfied with the general shape so far. There's still the fin/rudder to draw-out. I'm leaning toward a Ringmaster-shape.
Choosing belly/canopy contours takes no time at all.. nor does drawing (tracing) them onto the wood. " Cutting-out and sanding" the parts takes a little more time.. but that's modeling..![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
![Another proposed design by Roddie - Page 2 Fuse_c10](https://i.servimg.com/u/f76/18/50/45/90/fuse_c10.jpg)
The top-side of the nose; fairing back-into the canopy, needs a little attention.. but I'm satisfied with the general shape so far. There's still the fin/rudder to draw-out. I'm leaning toward a Ringmaster-shape.
Choosing belly/canopy contours takes no time at all.. nor does drawing (tracing) them onto the wood. " Cutting-out and sanding" the parts takes a little more time.. but that's modeling..
![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
Last edited by roddie on Fri Feb 08, 2019 8:45 pm; edited 1 time in total
Re: Another proposed design by Roddie
NEW222 wrote:roddie wrote: but it will hopefully contain the engine to the airframe, if the model meets terra firma in a "less than graceful manner"..
Hi again roddie. I am in no way saying to do this, but just an idea I have used before. I cannot say or guarantee that it does work 100%, but does add strength to the engine mounts. Where the light blue 'X' is, drill a hole of proper size right through the upright engine mounts (this includes through the fuselage as well). From there, insert your choice of bracing (red line in picture above the 'X;'). I have used both hard wood toothpicks as well as bamboo skewers (this is why I said drill accordingly). I fill the hole with either epoxy or wood glue, then insert my brace of choice and allow to dry. When dry, just cut off the ends and sand flush. To me, it is extra security for holding things to the fuselage. I would do one brace above the wing, and one brace below the wing. This is just my $.02.![]()
I LIKE that idea Chancey! I will definitely consider it!
![Thumbs Up](/users/3015/29/34/60/smiles/1541798026.gif)
more contouring, cutting and sanding..
![Another proposed design by Roddie - Page 2 Fuse_c11](https://i.servimg.com/u/f76/18/50/45/90/fuse_c11.jpg)
![Another proposed design by Roddie - Page 2 Final_10](https://i.servimg.com/u/f76/18/50/45/90/final_10.jpg)
I keep adding details to my drawing.. once I make them to the physical model. As you can see.. it's getting cluttered. I will probably re-draw the whole design using a larger pc. of paper. I use a good quality "graph-paper" because it holds-up to repeated "erasing".. and helps with measuring and squaring-up outlines. I use Scotch (Magic-Tape) on the backside-seams when using multiple sheets. Sometimes the sheet-edge(s) need to be "trimmed" so that the 1/4" grid-patterns intersect accurately. This is important when using the grid to measure across multiple sheets.
![Another proposed design by Roddie - Page 2 Fulcru11](https://i.servimg.com/u/f76/18/50/45/90/fulcru11.jpg)
getback- Top Poster
Posts : 10326
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: Another proposed design by Roddie
getback wrote:What the heck is up with all the added fuse material ? I have a stunt man 23 and it dont look nothing like that , what is the weight. Sorry butt it was looking good till (well)
![Shocked](https://2img.net/i/fa/i/smiles/icon_eek.gif)
The weight (less wheels and paint) is 4.5 oz.
![Another proposed design by Roddie - Page 2 Weight10](https://i.servimg.com/u/f76/18/50/45/90/weight10.jpg)
It's difficult to see in the above photo, but there's a 16+ inch piece of .062" music-wire on the scale which weighs .2 oz. I included it because the elev. pushrod will be made from it.. but at "half" that length.
I appreciate your honesty Eric.
Re: Another proposed design by Roddie
Eric, you are precious. Bet you have never been told that. Me neither. You ever leave the forum I'm following you out the door.
roddie I like your design but the horizontal stab doesn't come close to matching the wing. But, beauty is in the eye. I love the notations, I would be tempted to clear gloss them over and keep them. Adds uniqueness and charm.
Keep at it, you have never made a dud yet.
Bob
PS: Eric, the paint scheme on your plane is just plain awful.![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
roddie I like your design but the horizontal stab doesn't come close to matching the wing. But, beauty is in the eye. I love the notations, I would be tempted to clear gloss them over and keep them. Adds uniqueness and charm.
Keep at it, you have never made a dud yet.
Bob
PS: Eric, the paint scheme on your plane is just plain awful.
![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
rsv1cox- Top Poster
Posts : 10928
Join date : 2014-08-18
Location : West Virginia
Re: Another proposed design by Roddie
Oooooh. Added body parts! I like the thought, and changes. I wish I had the mindset to do something like that. Now as I see it with your added cut-outs, to me, it screams to me that it is like a cartoon type plane. I do like the shorter chubby style fuselage design, and that is where I see the 'cartoon' in it. Keep up teh good work, I'm enjoying it! I really like every little twist along the way.
NEW222- Top Poster
- Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb
Re: Another proposed design by Roddie
Kari, I think you have it.
Just add a little positive inboard taper to the wing and it fits, even carries out roddies oval horz stab.
The Brewster Buffalo, has been a favorite of mine. Seems it saw action early WW2. Clearly out classed though by fighters of the period.
Just add a little positive inboard taper to the wing and it fits, even carries out roddies oval horz stab.
The Brewster Buffalo, has been a favorite of mine. Seems it saw action early WW2. Clearly out classed though by fighters of the period.
rsv1cox- Top Poster
Posts : 10928
Join date : 2014-08-18
Location : West Virginia
Re: Another proposed design by Roddie
The Buffalo is one of my favourites too. Its world-wide signifigance is not very big, but it is the fighter that saved Finland in the beginning of the Continuation War against the Soviets. They did pretty good actually, of course the Soviets did not have their best and most experienced forces at our front.
Here’s one of the Aces, Hans Wind (yes, that’s his real name although it sounds like a some kind of a superhero nickname) with his Buffalo, note the kill markings on the tail.
![Another proposed design by Roddie - Page 2 Sakuva_lg_165769](https://static.sotasampo.fi/photographs/lg/sakuva_lg_165769.jpg)
Here’s one of the Aces, Hans Wind (yes, that’s his real name although it sounds like a some kind of a superhero nickname) with his Buffalo, note the kill markings on the tail.
![Another proposed design by Roddie - Page 2 Sakuva_lg_165769](https://static.sotasampo.fi/photographs/lg/sakuva_lg_165769.jpg)
KariFS- Diamond Member
- Posts : 2030
Join date : 2014-10-10
Age : 52
Re: Another proposed design by Roddie
rsv1cox wrote:Eric, you are precious. Bet you have never been told that. Me neither. You ever leave the forum I'm following you out the door.
roddie I like your design but the horizontal stab doesn't come close to matching the wing. But, beauty is in the eye. I love the notations, I would be tempted to clear gloss them over and keep them. Adds uniqueness and charm.
Keep at it, you have never made a dud yet.
Bob
PS: Eric, the paint scheme on your plane is just plain awful.
![lol!](https://2img.net/i/fa/i/smiles/lol.gif)
![lol!](https://2img.net/i/fa/i/smiles/lol.gif)
![lol!](https://2img.net/i/fa/i/smiles/lol.gif)
![Another proposed design by Roddie - Page 2 Passit11](https://i.servimg.com/u/f92/19/53/58/49/passit11.gif)
![Popcorn](/users/3015/29/34/60/smiles/1347041234.gif)
getback- Top Poster
Posts : 10326
Join date : 2013-01-18
Age : 67
Location : julian , NC
Re: Another proposed design by Roddie
getback wrote:rsv1cox wrote:Eric, you are precious. Bet you have never been told that. Me neither. You ever leave the forum I'm following you out the door.
roddie I like your design but the horizontal stab doesn't come close to matching the wing. But, beauty is in the eye. I love the notations, I would be tempted to clear gloss them over and keep them. Adds uniqueness and charm.
Keep at it, you have never made a dud yet.
Bob
PS: Eric, the paint scheme on your plane is just plain awful.![]()
![]()
OK i did say i was SORRY ! Hold on and i will take another look
There thats alot better . Just saying I know i built and painted ? that 23 when i was like 15 Its still in one piece . Roddie you the Man Whatever you decide is fine with me
![]()
![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
roddie, back to you.
Bob
rsv1cox- Top Poster
Posts : 10928
Join date : 2014-08-18
Location : West Virginia
Re: Another proposed design by Roddie
Thank You "all" for commenting. I appreciate it very much. Yes.. I tend to apply some unorthodox styling-cues and unconventional construction techniques to my models. There's often challenges along the way.. but there's always a way around them. Solving problems is something that I find enjoyable.. rather than getting frustrated. It does take patience.. of which I have a lot of.
.... hinging the stab./elev.
Most of you have seen me use this technique for CA-hinges before.. but I'll reiterate/post photos for those who haven't.
My control-surfaces to be hinged are 1/8" balsa. I layout the hinge-points using a scale.. prior to separating (cutting) the stab./elev. apart into two separate pieces. This assures that the hinge-points line-up on both parts.
![Another proposed design by Roddie - Page 2 Hingin10](https://i.servimg.com/u/f76/18/50/45/90/hingin10.jpg)
I like the "Sig Manufacturing" brand Easy Hinges. They are inserted into a "slot" in the control-surface and held secure with thin CA-glue. Each hinge measures 3/4" x 1" for larger models.. so I cut them into 1/4" x 3/4" pieces for my 1/2A airplanes. I use an x-acto #17 chisel-blade to cut the hinge-slots.
![Another proposed design by Roddie - Page 2 Hingin11](https://i.servimg.com/u/f76/18/50/45/90/hingin11.jpg)
After cutting the hinges to 1/4" x 3/4" I "nibble" the corners diagonally with clippers. This makes the hinge easier to install into the slot.
![Another proposed design by Roddie - Page 2 Hingin12](https://i.servimg.com/u/f76/18/50/45/90/hingin12.jpg)
For slotting 1/8" thickness control-surfaces, I use a half-thickness (1/16") strip of material. It could be 1/16" plywood.. or anything else.. as long as it's half the thickness of the control surfaces to be hinged. The #17 chisel-blade is laid-flat against the strip and up against the edge of the control-surface, which centers the blade for cutting the slot. It helps to clamp the workpiece close to the edge of a tabletop for better control of the tool.. and cutting-depth.
![Another proposed design by Roddie - Page 2 Hingin13](https://i.servimg.com/u/f76/18/50/45/90/hingin13.jpg)
Then the hinges are "dry-fitted" (no glue yet!!!)
![Another proposed design by Roddie - Page 2 Hingin15](https://i.servimg.com/u/f76/18/50/45/90/hingin15.jpg)
![Another proposed design by Roddie - Page 2 Hingin16](https://i.servimg.com/u/f76/18/50/45/90/hingin16.jpg)
![Another proposed design by Roddie - Page 2 Hingin17](https://i.servimg.com/u/f76/18/50/45/90/hingin17.jpg)
Once the dry-fitting is done, the hinges are removed and the surfaces get "beveled" (sanded) to a feathered-edge.
My control-surfaces to be hinged are 1/8" balsa. I layout the hinge-points using a scale.. prior to separating (cutting) the stab./elev. apart into two separate pieces. This assures that the hinge-points line-up on both parts.
![Another proposed design by Roddie - Page 2 Hingin10](https://i.servimg.com/u/f76/18/50/45/90/hingin10.jpg)
I like the "Sig Manufacturing" brand Easy Hinges. They are inserted into a "slot" in the control-surface and held secure with thin CA-glue. Each hinge measures 3/4" x 1" for larger models.. so I cut them into 1/4" x 3/4" pieces for my 1/2A airplanes. I use an x-acto #17 chisel-blade to cut the hinge-slots.
![Another proposed design by Roddie - Page 2 Hingin11](https://i.servimg.com/u/f76/18/50/45/90/hingin11.jpg)
After cutting the hinges to 1/4" x 3/4" I "nibble" the corners diagonally with clippers. This makes the hinge easier to install into the slot.
![Another proposed design by Roddie - Page 2 Hingin12](https://i.servimg.com/u/f76/18/50/45/90/hingin12.jpg)
For slotting 1/8" thickness control-surfaces, I use a half-thickness (1/16") strip of material. It could be 1/16" plywood.. or anything else.. as long as it's half the thickness of the control surfaces to be hinged. The #17 chisel-blade is laid-flat against the strip and up against the edge of the control-surface, which centers the blade for cutting the slot. It helps to clamp the workpiece close to the edge of a tabletop for better control of the tool.. and cutting-depth.
![Another proposed design by Roddie - Page 2 Hingin13](https://i.servimg.com/u/f76/18/50/45/90/hingin13.jpg)
Then the hinges are "dry-fitted" (no glue yet!!!)
![Another proposed design by Roddie - Page 2 Hingin15](https://i.servimg.com/u/f76/18/50/45/90/hingin15.jpg)
![Another proposed design by Roddie - Page 2 Hingin16](https://i.servimg.com/u/f76/18/50/45/90/hingin16.jpg)
![Another proposed design by Roddie - Page 2 Hingin17](https://i.servimg.com/u/f76/18/50/45/90/hingin17.jpg)
Once the dry-fitting is done, the hinges are removed and the surfaces get "beveled" (sanded) to a feathered-edge.
Re: Another proposed design by Roddie
Wow roddie. That looks great. I love the hinging method. I have used them in the past but they were almost never straight into the surface. Sometimes even poking through the surface. A nice and easy idea. Thanks. However, I have to ask. Do you feel the control surface is too stiff? I used to use strips of them as you, but thought they were too stiff for my liking. I have heard of old computer floppy disks, but never tried them. All the best!
NEW222- Top Poster
- Posts : 3895
Join date : 2011-08-13
Age : 45
Location : oakbank, mb
Re: Another proposed design by Roddie
Chancey, I used to use the sm. size Dubro pinned-hinges.. and cut the slots for them using the Dubro "Kwik-Hinge Slotter" tool. The pinned-hinges are nice.. but digging-out the slots for them is a wicked PIA. My first four designs from back in the 1990's have them. It's a wonder that I built any more models after that..
By the fourth one.. I had gotten better at it.. (my flapped orange plane has ten Dubro sm. pinned-hinges..) but once I tried the Sig CA hinges.. I never looked back.
I've wanted to try the "stitched-hinge".. and probably should have with this design.. but I'm used to the technique that I've developed with the CA type. Yea.. they're stiffer but I don't think it's a big deal. I fly control-line.. and I actually like the feedback at the handle.. if that makes sense. A 1/2A RC flyer might be concerned about the stresses that stiffer hinges might place on small/nano-servos.. but in reality; poorly-configured (binding) control-linkages pose more of a threat to a servo. IMHO..
Thanks again for your support!
![Laughing](https://2img.net/i/fa/i/smiles/icon_lol.gif)
I've wanted to try the "stitched-hinge".. and probably should have with this design.. but I'm used to the technique that I've developed with the CA type. Yea.. they're stiffer but I don't think it's a big deal. I fly control-line.. and I actually like the feedback at the handle.. if that makes sense. A 1/2A RC flyer might be concerned about the stresses that stiffer hinges might place on small/nano-servos.. but in reality; poorly-configured (binding) control-linkages pose more of a threat to a servo. IMHO..
![Smile](https://2img.net/i/fa/i/smiles/icon_smile.gif)
Thanks again for your support!
Page 2 of 7 • 1, 2, 3, 4, 5, 6, 7
![-](https://2img.net/i/empty.gif)
» Roddie's CEF 2019 "RWYB" proposed entry(ies)..
» New P-38 profile scratch build log
» Roddie-Rigger.. a 2005 original design
» Anyone knows this design?
» Cox Engines - Proposed Users
» New P-38 profile scratch build log
» Roddie-Rigger.. a 2005 original design
» Anyone knows this design?
» Cox Engines - Proposed Users
Page 2 of 7
Permissions in this forum:
You cannot reply to topics in this forum
